How to Install and Maintain Electric Vibrating Motors for Best Performance

Proper installation and care of an electric vibrating motor help it work well and keep your workplace safe. You can find these motors in many factories. Industrial vibration motors are used in vibrating feeders, screens, conveyors, and compactors. They are important in mining, food processing, recycling, automotive, and pharmaceuticals. These motors help materials move smoothly. They make sorting more accurate. They also help machines last longer by reducing damage. If you follow the best steps, you make things work better, keep people safe, and help motors and machines last longer.

Key Takeaways

• Good installation and regular care help electric vibrating motors work well. This also helps them last longer. Always follow safety rules to stay safe. Wear protective gear to stop accidents and electrical dangers. Use the correct tools, bolts, and ways to mount the motor. This lowers vibration and stops damage. Check motors often for noise, heat, and shaking. This helps you find problems early and fix them fast. Teach your team how to take care of the motors. Know when to ask experts for help to keep machines working well.

Electric Vibrating Motor Basics

What Is an Electric Vibrating Motor

You can see an electric vibrating motor in many factory machines. This motor makes vibration by spinning a special part called an eccentric mass. The vibration helps move, sort, or pack things in factories. If you want to know how do vibration motors work, think of them as machines that change electrical energy into shaking. You often find industrial vibration motor types in mining, food factories, and recycling plants.

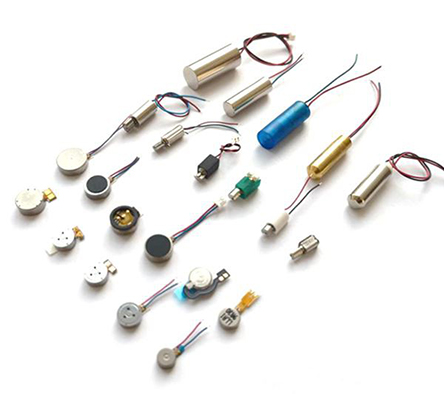

There are a few main types of industrial vibration motors:

• Eccentric Rotating Mass (ERM) motors spin an uneven weight to make steady vibration. These motors are easy to use and not expensive.

• Linear Resonant Actuators (LRA) use magnets to move a mass back and forth. They make exact vibration and do not use much power.

• Brushless DC (BLDC) motors use electronics instead of brushes. These motors last longer and are quiet, which is good for places that need less noise.

Industrial vibration motors can run at different speeds. Some work at 3000 rpm, and others at 1450 rpm. The speed and force depend on what you need to do. You must match the vibration force to the machine’s weight for the best results.

Key Components and Functions

Each electric vibrating motor has important parts that help it work well. You should know these parts to understand how do vibration motors work in factories.

• Rotor and Stator: The rotor spins when you give it electricity. The stator does not move and helps the rotor turn.

• Eccentric Mass: This part is on the rotor. When the rotor spins, the uneven mass makes vibration. You can change the size or weight of this mass to control how strong the vibration is.

• Power Source and Control Mechanism: The power source gives energy to the motor. The control mechanism lets you change the vibration frequency and amplitude. This helps you get the right vibration for your factory job.

Tip: Changing the vibration frequency and amplitude can help your industrial vibration motor last longer and work better.

You will also see that keeping the spinning parts balanced and managing resonance makes the motor work better. Choosing the right electric vibration motors for your job helps you get the best results and keeps your machines safe.

Importance of Proper Installation and Maintenance

Performance and Longevity

You want your industrial vibration motor to work well and last long. Good installation and care help motors do their best job. Studies show that problems like rotor failures or misalignment can make motors less efficient by 1.5% to 8%. If you use condition-based and predictive maintenance, you can find these problems early. Smart sensors and platforms help you see issues before they get worse. When your electric vibrating motor runs well, you save energy and lower CO2 emissions.

Doing regular maintenance keeps motors working almost like new. Studies show that bearing defects and broken rotor bars can make motors lose a lot of efficiency. You can use vibration sensors and thermography to find these problems. Fixing issues early helps you avoid expensive downtime and keeps your motor running longer. Reports say that good maintenance can make equipment last 20% to 40% longer. You spend less on repairs and replacements, and your machines stay dependable.

Tip: Always check vibration and temperature during inspections. This helps you find small problems before they become big ones.

Safety Considerations

Safety is important in every factory. If you do not install or maintain motors the right way, it can be dangerous. You could get electrical shocks, arc flashes, fires, or explosions if you ignore safety rules. Wires without covers and bad connections can cause burns or even loss of body parts. Overheating and insulation problems can start fires or break machines. Loose parts or water inside the motor can also hurt workers.

• Electrical shocks or electrocution from open wires

• Arc flashes that burn or cause explosions

• Fires from short circuits or overheating

• Mechanical failures that break machines and hurt people

• Injuries like burns, hearing loss, or vision loss

You must follow rules and certifications like UL, EASA, and ISO 2372. These rules help keep motors safe and working well. Regular checks, training, and using safety gear protect everyone at work.

Preparation for Installation

Tools and Materials

Get all your tools and materials before you start. This helps you work faster and safer. You will need a wrench set and screwdrivers. Bring a torque wrench and a level too. Use a multimeter to check the wires. Pick mounting bolts and washers that fit your motor. Keep gloves, safety glasses, and ear protection nearby. You might also need a wire stripper and cable ties. A cleaning brush can help clean parts. Always look at the manual for any special tools.

Site and Surface Checks

Look at the site before you install the motor. Make sure the area is clean and dry. The place should have good light. Wipe away dust, oil, or dirt from the surface. The surface must be flat and strong. Use a level to check if it is even. If the surface is not flat, the motor may shake too much. This can make it wear out early. Make sure there is space around the motor for air. Good airflow keeps the motor cool. Check that the power supply matches the motor.

Safety Steps

Safety is the most important thing when you install a motor. You must follow safety rules to stop accidents. The table below shows some important safety steps:

You should also do these things for electrical safety:

1. Keep your work area clean and bright. 2. Teach everyone about electrical safety and motors. 3. Look at wires for damage before you start. 4. Cover all electric parts and let only trained people touch them. 5. Ground all tools and systems to lower shock risk. 6. Use fuses, breakers, and ground-fault interrupters. 7. Turn off power before you work on the motor. 8. Use lockout/tagout steps to keep equipment off. 9. Wear insulated gloves and do not touch live wires. 10. Train often and keep a strong safety plan.

Tip: Never skip safety steps. Good planning and following rules help you stay safe and finish your work.

Installation Tips for Industrial Vibration Motors

Mounting and Alignment

Mounting and alignment are important for your motor. If you do these steps, your motor will last longer. You can also stop extra shaking and damage.

1. Choose the right way to mount your motor. Use foot or flange mounting for your job.

2. Put the motor on a flat and strong surface. This keeps it from moving too much.

3. Fill any spaces with shims or spacers. Do not use more than four shims so the base stays strong.

4. Line up the motor shaft with the machine it connects to. Use a straightedge, feeler gauge, or laser tool to help.

5. Tighten bolts in a crisscross way. Always use the torque numbers from the manual.

6. Add support brackets to hold the motor steady. This helps the mounts last longer.

7. Use isolator kits like spring or neoprene pads. These pads soak up vibration and protect the base.

8. After you tighten the bolts, check the alignment again. Bolts can move the motor a little.

9. Look at everything before you finish. Make sure the motor is flat, lined up, and has space for air.

10. Plan to check the alignment often. This keeps the motor working well and stops too much vibration.

Tip: Always use the steps in your manual. This helps you avoid mistakes and keeps your motor safe.

Bolt and Fastener Selection

Picking the right bolts and fasteners keeps your motor safe. Here are some easy steps to help you choose:

1. Think about how many times you will take the motor apart. Pick bolts that can handle this.

2. Look at where the motor will be used. If it is outside or near chemicals, use bolts that do not rust.

3. Choose bolts, screws, nuts, and washers that fit your motor.

4. Pick materials that are strong and not too costly. Steel, stainless steel, and brass are good choices.

5. Use bolts that meet rules like ASTM or ISO. This makes sure they are safe.

6. Pick bolts that do not come loose easily. Some have special heads or coatings.

7. Use locking nuts or wedge-lock washers if there is a lot of vibration.

8. Always use the right torque with a good tool. Clean the parts before you put in the bolts.

9. Do not use set screws for moving parts. They are not strong enough.

10. Match the bolt material to the base. Pick the right grade for strength.

Note: Using the right bolts keeps your motor safe and stops it from failing.

Electrical Connections

Good electrical connections help your motor work well. They also keep you safe from danger. Follow these steps for the best results:

• Use the right wire size and connectors for your motor’s power.

• Check the insulation and wire direction before you connect them.

• Use bolted lugs that fit your motor’s cables.

• Put joint compound on the wires to stop rust and lower resistance.

• Use good fasteners and washers to hold wires tight.

• Cover connections with heat shrink tubing or tape. This keeps out water and dirt.

• Pick connectors and covers that can handle shaking, heat, and wetness.

• Tighten all wires to the right torque. Do not make them too tight or too loose.

• Check wires often for damage, rust, or if they are loose.

• Always turn off the power and follow safety steps before you work.

⚡ Always use the instructions from the manual for wiring. This keeps your motor safe and working well.

Initial Testing and Calibration

After you install the motor, you need to test it. This helps you find problems early and makes sure it works right.

1. Test winding resistance and insulation with a multimeter and high-pot tester. This checks for shorts and bad insulation.

2. Measure the temperature of the motor and bearings with sensors.

3. Use accelerometers to check for shaking at the bearings. This helps you find loose or unbalanced parts.

4. Check if the shaft is lined up using sensors or accelerometers.

5. Measure the starting current with a current transformer.

6. Time how long it takes for the motor to reach full speed. Watch for odd shaking during this time.

7. See how long the motor takes to stop after turning off the power.

8. Put a load on the motor and watch how much power it uses.

9. Listen and look for noise, heat, or shaking during tests.

10. Write down all your test results for later.

Tip: Misalignment causes many problems in machines. Careful testing and calibration help you save money and stop breakdowns.

Maintenance Best Practices

Taking care of electric vibrating motors is important. Good maintenance helps motors work well and last longer. You can stop expensive problems by checking and fixing motors often. Here are some ways to keep your motors safe and working their best.

Routine Inspections

Check your motors often to find problems early. Regular inspections help you fix issues before they get worse. Use this table to plan when to check your motors:

Watch for loose bolts, leaking oil, or strange sounds. Use tools to listen for changes in vibration. If you see something wrong, fix it right away. This keeps motors safe and helps them last longer.

Tip: Always turn off power before you check or fix motors. This keeps you safe from getting shocked.

Cleaning and Lubrication

Clean motors work better and do not break as easily. Dirt and oil can make motors too hot and cause damage. Use gentle soap and low-pressure water to clean the outside. Do not use strong sprays because water can get inside and hurt the motor. Dry all parts before you start the motor again.

Grease helps motors run smoothly. Pick the right grease for your motor’s bearings. Synthetic grease with the right thickness works for most motors. If your motor is in a wet place, use waterproof grease. Grease the bearings while the motor is running and open the bottom plug. This lets old grease out and new grease in. Do not use too much grease. Too much can make the motor too hot and hurt the wires.

• Use special tools to check if bearings have enough grease.

• Watch bearing temperature. Keep it under 140-160°F.

• Use automatic grease tools if you have many motors.

• Write down all cleaning and greasing work.

Note: Too much grease is bad. Not enough grease is also bad. Always follow the instructions for your motor.

Replacing Worn Parts

Parts get old and need to be changed. Replace them before they break. Listen for clicking, scraping, or grinding when you start the motor. These sounds mean bearings or gears may be worn out. Too much shaking, heat, or weak performance also show parts need help.

Check your motors every month for signs of wear. Change bearings, brushes, or seals if they look damaged. If you see burnt wires or many broken parts, get a new motor. If fixing costs too much, replace the motor.

• Look for broken parts, loose wires, or bad insulation.

• Fix shaking fast by repairing gears, bearings, or rotors.

• Test wires, heat, voltage, and insulation when you check.

⚠️ Always turn off and lock power before you change parts. This keeps you safe from getting hurt.

Performance Monitoring

Watch your motors closely to keep them healthy. Checking performance helps you find problems before they stop the motor. Use vibration tests to find if parts are not lined up or are worn. Put sensors on the motor to watch shaking.

Check temperature to see if the motor is too hot. Use current tests to find electrical problems like overloads. Power checks help you see if voltage is steady. For motors with oil, test the oil for dirt or metal bits.

• Use remote tools and sensors to get data all the time.

• Write down all readings and compare them later.

• Teach your team to notice changes in sound, heat, or shaking.

Looking at vibration, heat, and current together shows how healthy your motor is. This helps you plan when to fix things based on real needs. You can stop surprises and keep your equipment working well.

Tip: Good installation, regular care, and checking performance help motors last longer and work better.

Troubleshooting Electric Vibrating Motors

Vibration and Noise Issues

Sometimes motors make loud sounds or shake a lot. This means something inside might be wrong. Worn bearings, misalignment, or loose bolts are common causes. If you hear grinding or rattling, check the bearings first. Bearings can break if they are dirty or dry. Changing them early stops bigger problems.

Loose bolts or a bumpy base also cause shaking. Make sure the motor sits flat and bolts are tight. The rotor inside can get unbalanced and make the machine shake. Use the table below to help find what is wrong:

Finding problems early helps motors last longer and keeps them safe.

Overheating Problems

Motors can get too hot if something is wrong. Always watch the temperature with a thermometer. Compare it to the safe number for your motor. If it is too high, fix it fast. Check if vents are blocked and clean away dust. This helps air move and cool the motor.

If the load is too heavy, lower it to a safe level. Grease is important for bearings. Not enough grease makes heat and friction. Use the right grease and amount. Change old bearings if needed. Check all wires and tighten them. Loose wires make heat and can hurt the motor.

If the motor is still hot, look for blocked or broken parts. Sometimes belts need fixing or replacing. If you cannot find the problem, ask an expert for help.

Tip: Keep the area cool and clean around your motors. Regular care stops most overheating problems.

Electrical Faults

Electrical faults can be hard to find in motors. Most problems come from the stator or rotor. You may see high shaking at some speeds. This can mean trouble with windings or the air gap. A short in the stator or a broken rotor bar can cause uneven shaking and heat.

Use special tools to check for these faults. High shaking at twice the line frequency means stator issues. Uneven shaking can mean stator eccentricity or loose iron parts. Test motors while they run with a load. Some faults only show up when the motor is warm. Use vibration analysis to tell electrical faults from mechanical ones.

Note: Checking motors often and keeping good records helps you find electrical problems before motors stop working.

Common Mistakes to Avoid

Incorrect Mounting

Incorrect mounting happens a lot with electric vibrating motors. If you do not mount the motor right, it will shake more and not line up. This makes the motor work harder and not last as long. You might see the motor use more energy and make more noise. If the motor is not even, it can hurt the bearings and break the insulation. Always use shims to make the motor level and check that bolts are tight. If you notice too much shaking after you mount it, try to separate the motor to find out what is wrong.

Here is a table that lists common installation mistakes and what they cause:

Tip: Always check if the motor is lined up and the base is strong before you start it. This stops extra shaking and keeps your motor safe.

Over-Tightening Bolts

Some people think tighter bolts are better, but too tight is bad. If you use too much force, you can break the threads or crack the base. This can make parts come loose later, which causes more shaking and noise. Loose or broken bolts can make the motor twist or move, which wears it out and can be dangerous. Always use the torque numbers from the manual. Use a torque wrench to make sure bolts are just right.

• If bolts are not tightened right, they can get loose and cause strange shaking or damage.

• Loose or not lined up eccentric blocks can also make the motor shake and break bearings.

Ignoring Safety Protocols

Skipping safety steps can put you and others in danger. If you do not wear safety gear or skip lockout/tagout, you could get shocked, burned, or start a fire. Bad wiring or blocked vents can make the motor too hot and break it. If the motor starts when you do not expect it, someone could get hurt or things could get broken. You could also get fined or sued if you do not follow safety rules.

⚠️ Always wear safety gear and follow all safety steps. This keeps you safe and helps your motor work well.

Maximizing Industrial Vibration Motor Lifespan

Best Operating Practices

You can help your industrial vibration motor last longer by using good habits every day. Make a plan for maintenance that fits your work and the kind of motor you have. Look at your motor daily for cracks, loose parts, or signs of wear. Use vibration tools to find problems early. Each week, check for dust, dirt, and oil. Clean the outside with a dry or damp cloth when the power is off. Always use the right lubricant and do not use too much or too little.

Check electrical connections and test insulation every month. Use vibration tests to find hidden problems. Once a year, take the motor apart. Clean the inside, change the bearings, and test the wires. Write down all checks and repairs. This helps you see what happens over time and make your care better.

Tip: Workers who know what to do help a lot. Teach your team how to pick the right industrial vibration motor and spot problems early.

Keep the cooling system clean. Dust on fans or vents can make the motor too hot. Make sure mounting brackets are tight and the motor is lined up. This stops uneven shaking. Always follow the maker’s rules for every step.

When to Seek Professional Help

Sometimes you need an expert to fix hard problems. If strong vibration does not stop after normal care, call a pro. If the same problems keep coming back or you cannot find the cause, get help. Hard electrical problems or jobs like rewinding need special skills.

• Get help if you do not feel safe or worry about your warranty.

• Pick service people who have experience and good tools.

• Getting help fast can stop big problems and keep your equipment safe.

Remember: Knowing how to pick the right industrial vibration motor and when to ask for help keeps your work running well.

You can help your electric vibrating motor work well by doing some simple things:

• Make sure the motor is lined up and the base is strong. This helps stop shaking and keeps parts from wearing out.

• Put grease on the bearings and watch the temperature. This stops the motor from getting too hot.

• Look at the wires and use guards to keep everyone safe.

• Write down how the motor works after you set it up. Check these notes when you do regular checks.

Always follow the maker’s rules and plan to check the motor often. If you need more help, look at EASA guides or ask a local expert for advice and help with problems.

FAQ

How often should you inspect an electric vibrating motor?

You should inspect your motor every week. Look for loose bolts, strange noises, or signs of wear. Write down what you find. Regular checks help you catch problems early.

What is the best way to clean a vibrating motor?

Use a soft brush or cloth to remove dust and dirt. Avoid spraying water directly on the motor. Make sure the motor is dry before you turn it on.

Why does your motor get too hot?

Your motor may get hot because of blocked vents, too much grease, or heavy loads. Check airflow and clean the area. Use the right amount of grease. Lower the load if needed.

Can you replace motor parts yourself?

You can change simple parts like bolts or bearings if you follow safety steps. Always turn off the power first. For hard repairs, ask a trained expert for help.

What safety gear should you wear when working with vibrating motors?

Tip: Always wear safety gear before you start any work on motors.
