How to Get Started with Brushless Motor Drivers

You might wonder how to control a brushless motor for the first time. You need a brushless motor driver, some basic hardware, and the right software. This guide walks you through each step. If you want a tutorial that feels most suitable or easier to learn, you’re in the right place.

Key Takeaways

• A brushless motor driver helps control how fast and which way a brushless motor spins. It works like the brain for your project.

• Picking the right motor driver and electronic speed controller (ESC) is very important. Make sure the driver’s voltage and current match your motor. This will help stop your motor from getting damaged.

• When you set up your motor driver, go slowly with wiring and testing. Setting it up the right way helps your motor run well and last longer.

Brushless Motor Driver Basics

What Is a Brushless Motor Driver

If you want to make a brushless motor spin, you need a brushless motor driver. This device works like the brain of your project. It tells the motor how fast to spin. It also tells it which way to turn. The driver controls how much force the motor uses. You can think of it as the boss that keeps things working right.

• A brushless motor driver sets how fast the motor spins.

• It chooses which way the motor turns.

• It controls how strong the motor pushes.

Most drivers use microcontrollers to read signals. They use gate drivers to turn power on and off. Sensors help everything work well together. Without a driver, it would be very hard to control bldc motors.

You might wonder how brushless motors are different from brushed motors. Here is a quick chart:

Brushless motors do not have brushes, so they last longer. They also need less fixing. This is great if you want fewer problems.

Why Use BLDC Motors

BLDC motors are special for many reasons. They give more power for their size. They use less energy. They are quiet, so your project will not be loud. You can control their speed and position very well. This makes them good for robots or drones.

Tip: BLDC motors are great if you want something that works well and does not break often.

Here are some reasons people like BLDC motors:

• They let you control speed and torque very well, which helps when using bldc motors.

• Their electronic control keeps them quiet, even when spinning fast.

You can find BLDC motors in electric bikes and computer fans. They work well and last a long time, so both beginners and experts like to use them.

Key Components

When you build a BLDC motor system, you need a few important parts. Each one helps your motor driver work smoothly and safely. Let’s look at what you’ll need and how these pieces fit together.

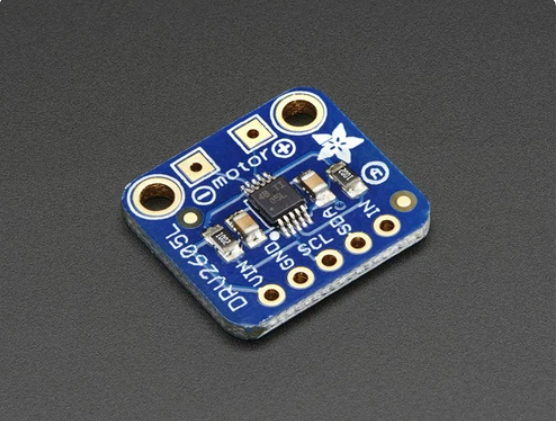

Motor Driver ICs

You can’t run a BLDC motor without a good motor driver IC. These chips control the power and signals that make your motor spin. Some popular motor driver ICs include the RAJ306010 and RAJ306001. They work with different voltage ranges and fit many projects. Here’s a quick look:

You might also see models like DRV8300, DRV8323, and DRV8328. These offer features like smart gate drivers and current sensing. Many motor driver ICs have a wide voltage range, compact size, and extra protection. This means your motor driver can handle tough jobs and keep your motor safe.

Tip: A motor driver with advanced protection helps your project last longer.

Electronic Speed Controllers (ESCs)

ESCs are like the hands of your motor driver setup. They take signals from your microcontroller and turn them into power for the motor. ESCs give you precise control, so your motor runs smoothly and efficiently. If you use a drone, ESCs help it fly longer and steadier. Some ESCs adjust timing and protect against heat, which keeps your motor driver working even in hard conditions.

Here’s what ESCs do for your motor driver system:

• Give smooth speed changes

• Boost power output

• Add safety features like thermal protection

You also need a microcontroller. It sends commands to your motor driver and ESC. A strong microcontroller can handle complex tasks and make your motor driver more flexible. Some have built-in features that save you time.

If you’re just starting, you can find entry-level motor driver kits for BLDC motors. Prices range from about $230 to $400, depending on what you need.

Note: Picking the right motor driver and ESC makes your project easier and safer.

Choosing a Brushless DC Motor Driver

Picking the right brushless dc motor driver can feel tricky at first. You want your motor to run smoothly and last a long time. Let’s break down what you need to look for and how to match your driver to your motor.

Matching Driver to Motor

You need to check a few things before you buy a brushless dc motor driver. The driver must fit your motor’s needs. If you choose the wrong one, your motor might not work or could even get damaged.

Here’s a table to help you see what matters most:

You should also think about where you’ll use your brushless dc motor driver. Some places get hot or wet. Some have lots of shaking or bumps. Here’s a quick list to help you decide:

• Temperature Range: Make sure your driver works in the heat or cold.

• Humidity and Moisture: Pick a driver that won’t break if it gets wet.

• Vibration and Shock: Choose a tough driver for rough places.

When you look at voltage and current ratings, you need to match them to your motor. If your motor needs 24V and your brushless dc motor driver only gives 12V, it won’t work right. If your motor pulls more current than your driver can handle, you risk burning out your driver. Always check the specs before you buy.

Here’s a simple checklist for picking your brushless dc motor driver:

1. Initial Cost vs. Long-Term Savings: Sometimes a pricier driver saves you money later because it lasts longer.

2. Application-Specific Needs: Don’t pay for fancy features you won’t use.

3. Power and Current Requirements: Get a driver that fits your motor, not one that’s too big or too small.

Tip: If you want your motor to last, pick a brushless dc motor driver that matches your motor’s voltage and current. This helps prevent damage and keeps your project running.

Brushless dc motor drivers work in many places. You’ll find them in hard disk drives, digital cameras, and even air conditioners. They help your devices run quietly and use less energy. If you want something that lasts, brushless dc motor drivers are a smart choice. They can run for 20,000 to 50,000 hours, much longer than brushed motors. You won’t need to fix them as often, which saves you time.

Sensorless vs. Sensored Control

Now you need to decide if you want a sensorless or sensored brushless dc motor driver. Both types have their own strengths. Let’s look at how they compare.

If you want easy setup and fewer parts, sensorless brushless dc motor drivers are a good pick. They use back EMF to guess the rotor’s position. You don’t need extra sensors, so your project stays simple. Sensorless drivers cost less and need less fixing. They work best when your motor runs fast, like in drones or fans.

Sensored brushless dc motor drivers use sensors to track the rotor. You get smooth starts and better control at low speeds. If you need your motor to start strong or move slowly, sensored drivers are the way to go. You’ll see these in robots or electric vehicles.

Some sensorless systems, like InstaSPIN-FOC, make things easier for beginners. You get true velocity profiling, which means you can control speed very well. These systems work great if your motor runs at a steady speed. You might find it hard to get strong torque at low speeds, but for most simple projects, sensorless control is enough.

Note: If you want less hassle and lower cost, try a sensorless brushless dc motor driver. If you need precise control, go with a sensored driver.

No matter which type you pick, always check your motor’s needs first. The right brushless dc motor driver helps your project run better and last longer.

Setup Guide

Wiring the Motor Driver

Ready to wire up your brushless motor driver? Let’s walk through the steps together. You’ll need a few tools and parts before you start. Grab a digital multimeter, an oscilloscope, an Arduino, an L6234 motor driver, and some capacitors and resistors. Make sure you have your BLDC motor and Hall sensors handy.

Here’s how you can wire everything up:

1. Gather all your tools and materials. Lay them out so you can see everything.

2. Set up your brushless dc motor. Install Hall sensors if you want position feedback.

3. Connect the L6234 motor driver to the three phases of your BLDC motor. Use the labels A, B, and C for the phase wires.

4. Wire your Arduino to the motor driver. Double-check the pin connections for control signals.

5. Attach capacitors and resistors as needed. These help smooth out the power and protect your setup.

6. Use the enable pins on the L6234 for PWM control. This lets you manage the motor speed.

7. Power up the system. Test each connection with your multimeter to make sure everything works.

Tip: Always disconnect the power before you change any wires. This keeps you safe and protects your motor.

Wiring mistakes can happen, but you can avoid them if you pay attention. Here are some common problems and how to dodge them:

• Wrong wiring combinations can make your motor vibrate or not move at all.

• If you swap Hall signal wires while the power is on, you might damage the sensors.

• Loose connectors can cause phase loss or poor performance.

Before you finish, check these things:

1. Make sure the voltage at your microcontroller is right.

2. Inspect the brake connection for the correct voltage.

3. Test the speed control voltage.

4. Look at all connectors and make sure they’re tight.

5. Examine the output and drive circuits for any damage.

Setting up the phasing relationships is important for smooth motor control. Here’s a quick guide:

1. Number the Hall output wires and connect them to the right inputs.

2. Connect the Hall sensors’ supply voltage and ground.

3. Label the motor’s phase wires as A, B, and C. Connect them to the outputs.

4. Power up the board and enable the motor. If it turns, try moving each phase wire one spot and compare how it feels.

5. If the motor doesn’t turn, swap any two phase wires.

6. If the motor spins the wrong way, swap the Hall input wires and repeat.

Note: Take your time with wiring. Careful setup helps your brushless dc motors run better and last longer.

Software Control Basics

Now you get to learn how to control your motor with software. You’ll use Pulse Width Modulation (PWM) to change the speed. PWM lets you adjust the average voltage sent to the motor. The higher the duty cycle, the faster your motor spins.

Here’s a simple example using Arduino code:

// Set up PWM for motor speed control
int pwmPin = 9;
int speed = 128; // Range: 0-255

void setup() {
  pinMode(pwmPin, OUTPUT);
}

void loop() {
  analogWrite(pwmPin, speed); // Control motor speed
}

You also need to set up your control pins for three-phase operation. Functions like PORT_Init() help you configure the hardware. If you use Hall sensors, make sure your software reads their signals for better motor control.

Many people use platforms like Arduino, ESP32, or STM32 for motor control. You can try libraries such as the Arduino Simple Field Oriented Control library or use tools like STM32Cube and MC Workbench. These make it easier to set up and tune your brushless dc motor.

Tip: Start with simple code and test your motor at low speeds. This helps you spot problems early.

Safety matters when you work with brushless dc motors. Here’s what you should do before you power up:

1. Inspect your motor for damage. Make sure the shaft turns smoothly.

2. Check that your workspace is dry and has good airflow.

3. Match your power supply to the motor’s rated voltage and current.

4. Follow the wiring diagram closely.

5. Manually turn the motor shaft to check for smooth movement.

6. Use your test equipment to check current, voltage, and speed.

7. Always disconnect power before you touch any wires.

8. Wear safety gear if you work with high-power setups.

⚡ Stay safe! Careful setup and testing help you avoid accidents and keep your brushless dc motor running strong.

When you follow these steps, you’ll learn how to control your motor and avoid common mistakes. Take your time, test each part, and enjoy building your own motor control system.

Troubleshooting

Common Issues

You might run into a few problems when you set up your brushless motor driver. Don’t worry—lots of beginners face these same issues. Here’s a quick list of what you might see:

• Motor does not start or spins in a jerky way.

• MOSFETs get too hot or don’t switch at all.

• Both high-side and low-side MOSFETs turn on together, which can damage your board.

• You hear strange noises or see the motor stop suddenly.

• The motor driver shows errors because of undervoltage.

• You notice ringing at the outputs, which can mess with performance.

• Unused phases or sensor wires cause confusion.

• The motor gets too hot or the ESC does not respond.

Tip: If your motor fails to start, check the power supply voltage first. Use a multimeter to measure it. Make sure all wires are tight and in the right place.

You can use simple tools to find problems. Try a continuity test for motor windings. Manually turn the motor shaft to feel for smooth movement. If you have sensor data, you can use it to spot faults quickly.

Fixing Mistakes

Let’s fix those issues step by step:

1. Check every wire and connector. Make sure nothing is loose or in the wrong spot.

2. If the motor acts strange, swap the phase wires or check the Hall sensor cables. Shielded cables help cut down on interference.

3. If you see overheating, look for short circuits or too much load. Match your power supply to the motor’s needs.

4. If the ESC ignores your signals, double-check the sensor connections and ESC settings.

5. Hear odd sounds? Look for misaligned parts or mechanical problems.

🛠️ Remember: Take your time and test each step. Careful troubleshooting helps your motor driver work better and last longer.

You now know how to set up your brushless motor driver. You also learned how to fix problems. Keep your workspace neat and safe. Check your sensors often to make sure they work. Try changing settings to see what happens. Don’t worry about making mistakes. You can learn by testing new ideas. If you want more help, look at these resources:

• Everything You Ever Wanted to Know About Brushless Motors

• Basic Principles and Overview of BLDC Motors

FAQ

How do you know if your brushless motor driver is working?

You can check if your motor spins smoothly and responds to speed changes. Use a multimeter to test voltage at the driver’s output.

Can you use Arduino to control a brushless motor driver?

Yes, you can use Arduino. Just send PWM signals from your Arduino to the motor driver. Many beginners start with Arduino for easy control.

What should you do if your motor gets hot?

Stop your motor right away. Check for wiring mistakes or too much load. Make sure your power supply matches your motor’s needs.
