DC Motors Types: Why Understanding the 5 Main Types Matters

Understanding the five main dc motors types helps you make smarter choices for your projects. Each dc motor has unique features that affect efficiency, maintenance, and cost. For example, brushless dc motors reach up to 90% efficiency, which means lower energy bills and less downtime.

You save money by picking the right dc motor. DC motors need less maintenance because they have fewer parts. Brush replacement is simple and keeps your dc running longer. Knowing how dc motors work helps you avoid mistakes and get better results with dc motors.

• DC motors types give you more control, better speed, and strong torque for many uses.

• Using the correct types of dc motors can reduce your total costs and improve performance.

Key Takeaways

• Knowing the five main DC motor types helps you pick the best motor for your project and save money.

• Each motor type offers unique benefits like high efficiency, strong torque, or easy maintenance.

• Brushless DC motors last longer, run quieter, and use less energy but cost more upfront.

• Choosing the wrong motor can cause damage, poor performance, and higher costs.

• Match your motor’s torque, speed, and load needs to get smooth operation and longer life.

Types of DC Motors

Choosing the right dc motor starts with understanding the main types of dc motors. Each type has special features that make it better for certain jobs. When you know the differences, you can pick the best dc motor for your needs and avoid costly mistakes.

Permanent Magnet DC Motor

Permanent magnet motors use strong magnets to create the magnetic field inside the motor. You do not need extra power to make this field, which makes these dc motors types simple and efficient. Permanent magnet dc motors often run cooler and use less energy than other types. For example, tests on furnace blowers show that these motors keep steady airflow and use less power, even when the system faces more resistance.

You will find permanent magnet motors in small appliances, toys, and car fans. They work well in battery-powered devices because they save energy. However, these motors can cost more because high-quality magnets are expensive. Over time, heat or age can weaken the magnets, which may lower performance.

Tip: If you want a dc motor that is easy to use and needs little maintenance, permanent magnet motors are a smart choice for many uses.

Shunt DC Motor

A shunt dc motor has its field winding connected in parallel with the armature. This setup gives the motor good speed control. When you use a shunt dc motor, the speed stays almost the same, even if the load changes. This makes it perfect for machines that need steady speed, like lathes or conveyor belts.

Standard tests show that shunt dc motors handle changes in load well. They keep their voltage and speed steady, which helps in applications where you cannot have big speed swings. You can also use these motors in renewable energy systems, such as solar-powered pumps, because they work well with changing power sources.

Note: Shunt dc motors are a great pick when you need reliable speed and smooth operation.

Series DC Motor

Series dc motors have their field winding in series with the armature. This means the same current flows through both parts. These dc motors types give you very high starting torque. If you need a motor to start heavy loads, like in cranes or electric trains, a series dc motor is a strong choice.

However, the speed of a series dc motor changes a lot with the load. If you remove the load, the motor can spin too fast and get damaged. You should only use series dc motors in applications where the load never drops to zero.

Warning: Never run a series dc motor without a load. It can spin out of control and break.

Compound DC Motor

Compound wound motors combine the features of shunt and series dc motors. They have two field windings: one in parallel and one in series with the armature. This design gives you a balance between good speed control and strong starting torque.

You can use compound wound motors in presses, elevators, and rolling mills. These applications need both steady speed and the ability to start heavy loads. There are two main types of compound wound motors: cumulative and differential. Cumulative compound motors give you more torque, while differential compound motors keep the speed steady but may lose torque under heavy loads.

Tip: Compound wound motors are a good choice when you need both power and control in your dc motor.

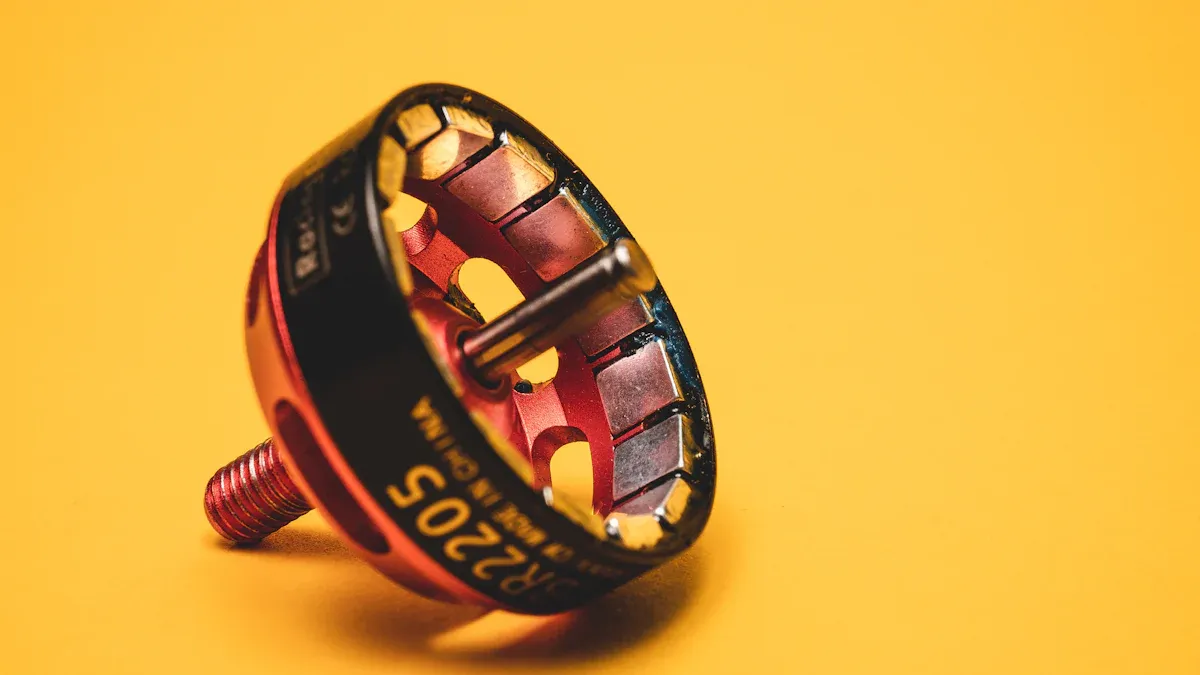

Brushless DC Motor

Brushless dc motors, also called BLDC motors, use electronics instead of brushes to switch the current. This makes them more efficient and reliable than brushed dc motors. You do not have to worry about brush wear, so these dc motors need less maintenance and last longer.

Studies show that brushless dc motors reach higher efficiency and power density. They run quietly and handle heat better, which is important in electric vehicles and drones. You will also find these dc motors in computers, fans, and medical devices. The only downside is that brushless dc motors cost more at first and need special controllers.

Note: If you want a dc motor that is quiet, efficient, and lasts a long time, brushless dc motors are the best option for many modern applications.

Why Knowing the Types of DC Motors Matters

When you understand the main dc motors types, you can match the right motor to your project. This knowledge helps you get better performance, save money, and avoid problems. You will also learn how dc motors work and find the best uses for dc motors in your field.

Why Types Matter

Performance Differences

You get different results from each dc motor type. Some dc motors give you high efficiency, while others offer better control or longer life. For example, brushless dc motors use electronics instead of brushes. This design reduces friction and energy loss, so you see higher efficiency and longer battery life in electric vehicles. In one case study, engineers compared a traditional dc motor with a brushless design. The brushless dc motor ran cooler and used less power, making it a better choice for compact and energy-saving applications.

Control also changes with the type of dc motor. When you use advanced control methods like Pulse Width Modulation or Field-Oriented Control, you get smoother speed and better torque. These methods help dc motors respond faster and more precisely, which is important in robotics and automation.

Regular maintenance, such as checking the commutator and using high-quality brushes, keeps your dc motor running longer and more efficiently.

Application Fit

You need to match the right dc motor to your application. Some dc motors work best in jobs that need steady speed, like conveyor belts. Others, such as series dc motors, give you strong starting power for heavy loads. If you choose a dc motor that fits your needs, you get better performance and fewer problems.

For example, you might use a permanent magnet dc motor in battery-powered tools because it saves energy. In contrast, you would pick a compound dc motor for elevators, where both speed control and torque matter. Each dc motor type has strengths that make it the best fit for certain applications.

Consequences of Wrong Choice

If you pick the wrong dc motor, you risk poor performance and higher costs. Using the wrong type can cause overheating, noise, or even damage. For instance, if you use a series dc motor without a load, it can spin too fast and break. In another real-world case, poor commutation in a dc motor led to extra heat and wasted power. This not only reduced efficiency but also shortened the motor’s life.

• Loss of efficiency: Incorrect current flow increases resistance and heat.

• Reduced torque: Weak magnetic fields lower the power output.

• More noise and vibration: Uneven torque can damage the dc motor and nearby parts.

• Shorter lifespan: Extra wear on brushes and commutators means more repairs.

Choosing the right dc motor type helps you avoid these problems and keeps your equipment running smoothly.

DC Motor Selection

Matching Motor to Need

You want your dc motor to fit your project perfectly. Start by looking at what your application needs. Some dc motors work best for steady speed, while others handle heavy loads better. For example, if you need high starting torque, a series dc motor is a smart pick. If you want smooth speed control, a shunt dc motor will serve you well. Always check the torque-speed curve for each dc motor. This curve shows how the motor performs under different loads and speeds. Matching the curve to your needs helps you avoid stalling or overheating.

Tip: Think about the environment where you will use your dc motor. High temperatures or dust can affect performance and life.

Key Selection Factors

When you choose a dc motor, focus on these important factors:

1. Torque and Speed: Make sure the dc motor can deliver enough torque and speed for your application. Use the torque-speed curve to guide your choice.

2. Efficiency: Pick a dc motor that runs in its best efficiency zone. This reduces wasted energy and heat, making your motor last longer.

3. Maintenance: Some dc motors need more care than others. Brushless dc motors need less maintenance, while brushed types need regular brush checks.

4. Load and Duty Cycle: Consider how often and how hard you will run your dc motor. Heavy or changing loads need motors built for tough jobs.

5. Heat Management: Good cooling keeps your dc motor running longer. Overheating can cause early failure.

A table can help you compare:

Common Mistakes

Many people make mistakes when picking dc motors. You can avoid these problems by understanding the types and their uses.

• Ignoring the torque-speed curve leads to poor performance.

• Choosing a dc motor without checking load needs can cause stalling or overheating.

• Skipping regular maintenance shortens motor life. Most failures come from worn bearings or poor lubrication.

• Not planning for the environment can lead to dust or heat damage.

• Overlooking efficiency increases energy costs.

Note: Regular inspections and good records help you spot problems early and keep your dc motor running strong.

By learning about dc motors and their types, you make better choices. You save money, avoid breakdowns, and get the best results for all uses for dc motors in your applications.

Understanding DC motor types helps you make smarter choices for your projects. You get better performance, fewer mistakes, and more reliable results. When you know which motor fits your needs, you save time and money.

Remember: The right motor leads to smoother operation and longer life for your equipment.

If you face a complex project, consider talking to an expert or doing more research. Use what you learned here to guide your next DC motor decision.

FAQ

Why should you care about the type of DC motor you choose?

You get better results when you pick the right DC motor type. The right choice gives you more efficiency, longer life, and fewer problems. You avoid wasting money and time on repairs.

Why do some DC motors need more maintenance than others?

Some DC motors have brushes that wear out over time. You need to replace these brushes to keep the motor running well. Brushless motors do not have this problem, so you spend less time on maintenance.

Why does the wrong DC motor type cause problems in your project?

The wrong motor can overheat, make noise, or even break. You might see poor speed control or weak power. Picking the right type helps your project work smoothly and safely.

Why do brushless DC motors cost more at first?

Brushless DC motors use special electronics and parts. These parts cost more to make. You pay more at first, but you save money later because the motor lasts longer and uses less energy.
