Customizing Coin Vibration Motors: Size, Leads and Connectors

You can pick what your device needs with INEED's custom choices for Coin Vibration Motors. Customizing helps you find the best match for your project. It also makes the motor work better. You can pick the size, how long the lead wire is, and what connector you want. The table below shows what you can change for your motor:

Key Takeaways

• Pick the motor size that fits your device. This helps you get the best vibration feel. You do not need to change your product’s design.

• Change lead wires by choosing the length, type, and connectors. This helps your device last longer. It also makes your device work better.

• Pick connectors like Molex, JST, or FPC. Choose based on your device’s space and strength needs. Think about where your device will be used. This makes assembly easier.

• Work with INEED by sharing your design and needs. This helps you get custom motors that fit your project well.

• Test samples before you order many motors. This makes sure the motor fits and works well in your device.

Coin Vibration Motors Size Options

Importance of Size for Device Integration

You need to think about size when you choose Coin Vibration Motors for your device. Small motors fit well in thin devices like smartwatches and smartphones. These motors work best in places where space is tight and a flat shape is important. The right size lets you add vibration feedback without changing the look or feel of your product. If you pick the wrong size, the vibration might feel too weak or too strong. This can change how people use your device. For example, a smartwatch needs gentle vibrations for alerts, while a gaming controller needs stronger feedback for a better experience.

Tip: Always match the motor size to your device’s needs to get the best performance.

Available Sizes from INEED

INEED gives you many choices for Coin Vibration Motors. You can pick from a wide range of diameters and thicknesses. Here is a table that shows some common options:

You can use these motors in many devices:

• Wearables

• Medical devices

• Fitness trackers

• Smartphones

• Other compact electronics

If you need a very small motor, the C0820BE03L27 is a good choice for light devices. For wearables, the C0720BEL27 works well because of its small size.

Custom Size Selection Process

You can ask INEED to make a motor that fits your special needs. Here is how you can start:

1. Share your design idea and basic needs with INEED.

2. INEED will suggest a solution and give you the first set of details and a price.

3. After you check and approve the sample, INEED will start making your motors.

This process helps you get a motor that fits your device perfectly. You can trust INEED to help you from the first idea to the final product.

Customizing Leads for Coin Vibration Motors

Lead Wire Types and Materials

You can pick from different lead wires for your Coin Vibration Motors. The right lead wire helps your device last longer and work better. INEED gives you many choices for lead types and materials. The table below lists some common options:

Most lead wires use AWG 30#, UL1571, and PVC to cover them. You can also get twisted wires or add connectors for your project.

Lead Length and Strip Customization

INEED can make lead wires as long or short as you want. Here are some choices you have:

• Standard lead wire lengths fit most devices.

• You can get custom lengths for special projects.

• You can pick how much wire is stripped at the end.

• Twisted wires help stop noise in your device.

• You can add different connectors for easy building.

Tip: Use short leads for small devices. Long leads help you reach more parts.

Soldering the leads makes a strong connection. Heat-shrink tubing gives extra safety. For water-resistant devices, ask for special sealing or waterproof covers.

Specifying Custom Leads with INEED

You need to tell INEED some details to get the right leads. Work with a sales engineer to choose the best options. The table below shows what to think about:

Tell INEED the lead wire length, connection type, and wiring you want. This makes it easier to put together and helps the Coin Vibration Motors fit your device. INEED’s motors are good for battery-powered devices because they use little power and work with 3.0V or 3.7V.

Connector Solutions for Coin Vibration Motors

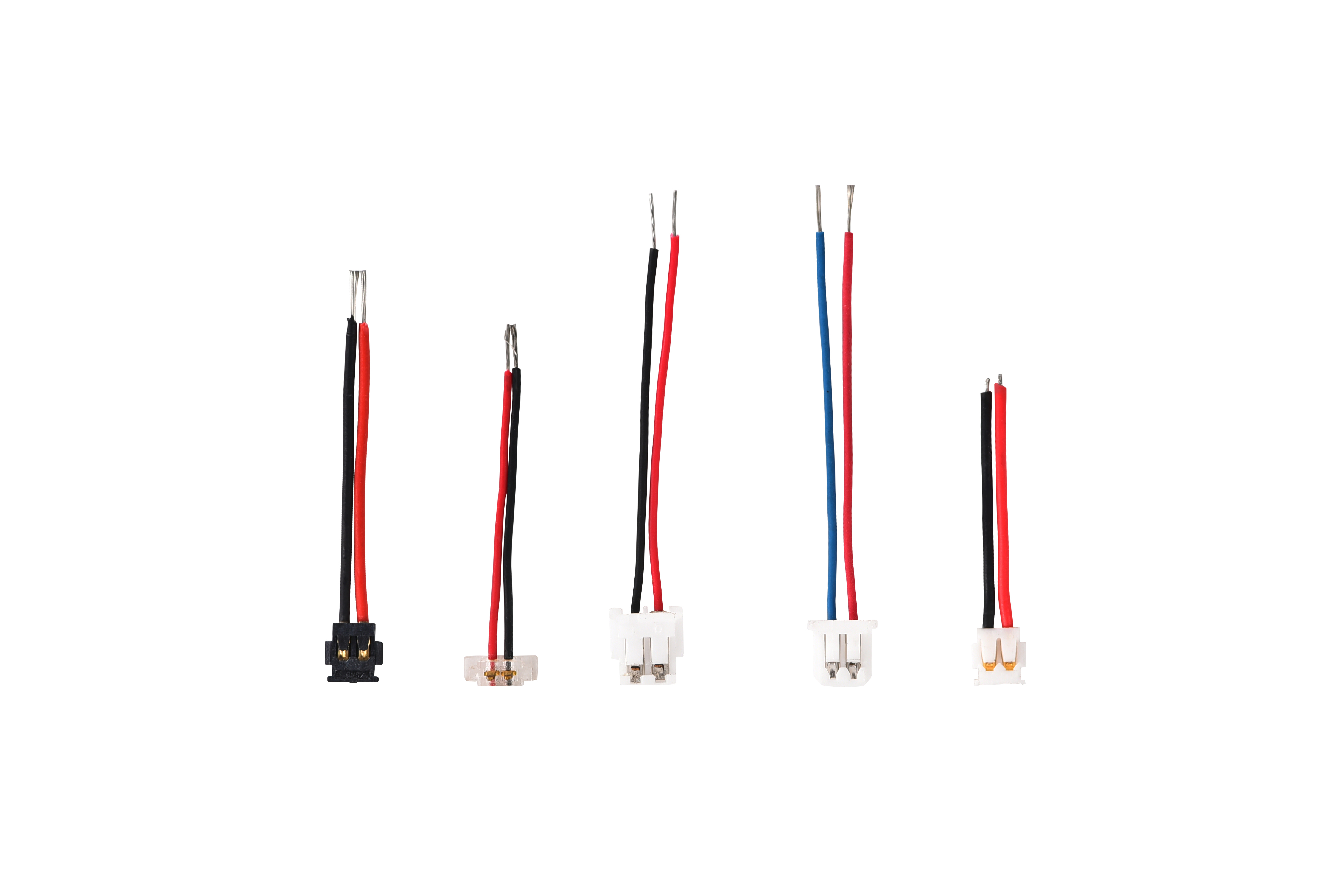

Common Connector Types (Molex, JST, FPC)

There are many connector choices for Coin Vibration Motors. Each one is good for different jobs. Here are some of the most used types:

• Molex PicoBlade Connectors: These connectors fit well in small places. The Molex 51021-0200 has a 1.25mm pitch and works with 2 circuits. The Molex 51021-0300 works with 3 circuits. Both have strong PBT housing and use UL1571 28/30/32AWG wires.

• JST Connectors: JST SHR-02V-S-B and SHR-03V-S-B are good for wire-to-board jobs. They have a 1.00mm pitch and work with 2 or 3 circuits. JST SYR-02T and SYR-02TV are for wire-to-wire jobs and have a lock for safety.

• Flexible Printed Circuits (FPC): FPC connectors bend and fit in tight spots. They are great for thin devices.

• Other Options: You can also use contact pads, helical spring contacts, or compression spring mounts for special needs.

Tip: If you need a special connector, you can send your own connector to INEED for assembly.

Choosing the Right Connector for Your Application

Pick a connector that fits your device’s needs. Look at this table to compare connector types:

When you pick a connector, think about these things:

• How strong and how often you want the vibration.

• How much space you have and how you will put in the motor.

• What the environment is like, such as humidity and temperature.

You should also check the voltage, size, power use, and how long you want the motor to last. The table below shows why these things are important:

Custom Connector Assembly by INEED

INEED can help you make the right connector setup for your project. Here is how it works:

• You tell INEED what you need, like wire length, connector type, and any special requests.

• INEED can add Molex, JST, or FPC connectors to your Coin Vibration Motors.

• You can send your own connectors if you want something special. INEED will put them together for you.

• INEED can also change electrical settings, like voltage or speed, to fit your device.

This service helps you get motors that fit your design. You save time and get good results for your device.

INEED Customization Process

Communicating Requirements to INEED

You can tell INEED what you need for your project. Here are some ways to contact them: You can send an email with your requests to inquiry@ineedelectronics.hk. A sales person will answer you in about 8 hours. You can also call INEED at +86-769-22891073 if you want a fast reply. You can check their website for more contact info and their address. If you have questions or need help, you can reach out anytime.

Tip: Give as many details as you can about your device and project. This helps INEED give you the best match.

Lead Times and Minimum Orders

You might want to know how long it takes to get your custom motors and how many you need to buy. INEED makes this easy to understand.

• You can get samples in just 5 days. This lets you test the motor before you order a lot.

• If you order 10,000 or more, mass production takes only 3 to 4 weeks.

Here is a table that shows the smallest order you can make for some models:

You can ask for a prototype or a small batch before you buy a lot. INEED helps with both small and big projects.

Tips for Successful Customization

You can make your project better by following these tips:

• Change the vibration intensity, frequency, and how long it lasts to fit your device.

• Pick the right wire length, connector, and mounting style for your design.

• Tell INEED about your application. This helps their engineers give you the best advice.

• Test a prototype before you order a lot. This helps you see if it fits and works well.

• Use INEED’s help for both small tests and big orders. You can start with one and order more when you are ready.

Here is a table that shows how INEED helps you at every step:

Note: INEED checks quality for every order. You get Coin Vibration Motors you can trust.

You can count on INEED to help you from your first idea to the finished product. You get support, free samples, and your order comes on time for every project.

You can make INEED Coin vibration motors fit your device. Pick the size, lead type, and connector you need. When you work with INEED, you get:

• Motors that save energy and help batteries last longer

• Many ways to change how strong, fast, or long the vibration is

• Help from experts who know how to support your project

Contact INEED today if you want a custom and reliable solution for your needs.

FAQ

What devices can use INEED Coin vibration motors?

You can use these motors in wearables, medical devices, smartphones, and fitness trackers. They fit well in compact electronics that need haptic feedback.

How do you request a custom motor sample?

You send your requirements to INEED by email or phone. INEED will prepare a sample for you to test before you place a large order.

Can you choose your own connector type?

Yes, you can. You pick from Molex, JST, FPC, or send your own connector. INEED will assemble the motor with your chosen connector.

How long do Coin vibration motors last?

You get up to 864,000 cycles with standard use. This means the motor can work for about 72 hours if you run it one second on, two seconds off.
