Understanding Brushless Coin Vibration Motor Dimensions for Optimal Performance

You should look closely at the size of a brushless coin vibration motor if you want your device to work well. Diameter and thickness decide how the motor fits and how strong the vibration is. Studies show that smaller motors are good for small devices. Bigger or thicker motors make stronger vibrations when you need more power. Picking the right size helps you avoid weak performance and makes sure the vibration motor gives users the feedback they want.

Key Takeaways

• Pick the right diameter for your vibration motor. Small diameters work well in tiny devices. Bigger diameters make stronger vibrations.

• Think about how thick the motor is. Thin motors help make slim designs. Thicker motors give more power but can be heavier.

• Weight changes how much the motor vibrates. Heavy motors make stronger vibrations. Light motors use less energy and fit in small spaces.

• Always check the motor’s size before you install it. Good measurements stop fitting problems and help the motor work well.

• Try the motor in place before you finish installing it. This stops weak vibrations and gives a better user experience.

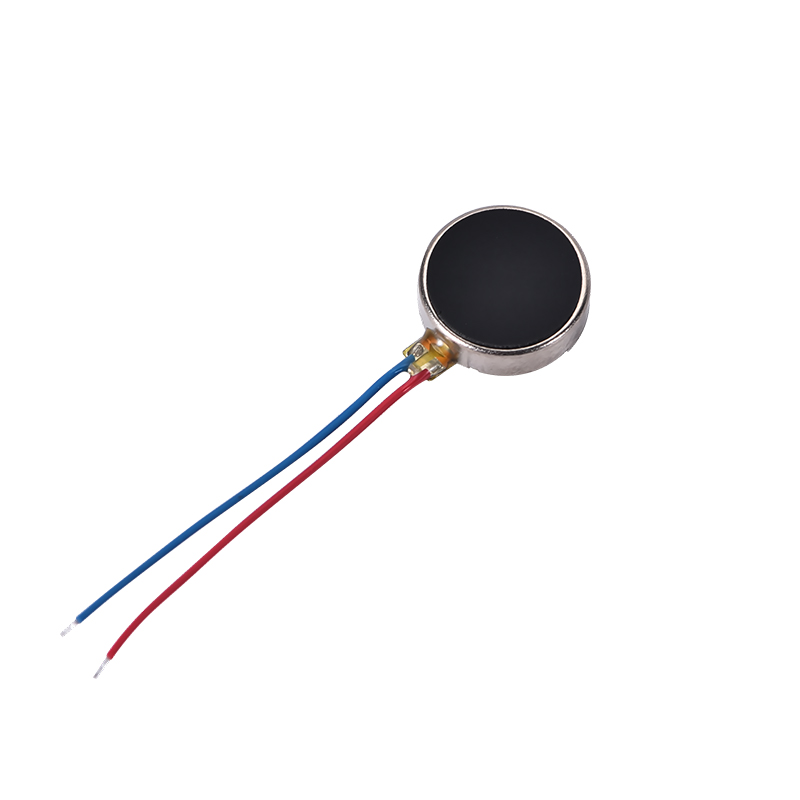

Brushless Coin Vibration Motor Dimensions

Diameter and Device Fit

When picking a brushless coin vibration motor, think about diameter first. Diameter tells you if the motor will fit in your device. Small diameters are good for tiny products like smartwatches. The C0620BLDCL27 motor is small, so it works well in wearables. If you need an even smaller vibrating motor, try the C0518BLDCF01 . This is the smallest brushless coin vibration motor you can get. It fits in very light devices and gives a soft vibration with a low G-force of 0.1G. This shows why size matters when you want to save space and keep things light.

You can check the usual diameter ranges for brushless coin vibration motors in the table below:

Most wearables and smartphones use vibration motors in this range. If you pick a diameter that is too big, your device might get bulky. If you pick a diameter that is too small, the vibration may not feel strong. Picking the right diameter helps you balance device size and vibration strength.

• Small diameters help you fit the vibration motor into thin devices.

• Big diameters can give stronger vibration, but they need more room.

Thickness and Slim Design

Thickness is also important when you choose a good vibration motor. Thin vibration motors let you make very slim products. Some butterfly-shaped piezoelectric ultrasonic motors are about 1 mm thick. These motors help you build flat devices that use less energy and cost less. Some motors, like HDD spindle motors, are about 5 mm thick. These need more space but can handle more power.

When you design a slim device, you must decide how thick your vibration motor can be. Thin motors help you keep your device light and easy to carry. Thick motors may give stronger vibration, but they can make your device heavier and less comfy to wear. You also need to think about how long the motor will last. Thick motors can last longer in tough places, but they may cost more and take up more space. Talking to manufacturers early helps you find the best thickness for your project and budget.

Tip: Always check the thickness of your vibration motor before you finish your device design. This helps you avoid problems with fitting and performance.

Weight and Vibration Output

Weight is important for how your vibration motor works. The size and weight of the motor change how strong the vibration feels. Heavy motors can make stronger vibration, but they use more energy. Light motors save energy and fit better in small devices, but their vibration may feel weaker.

Here is a table comparing the performance of different types of vibration motors:

Brushless coin vibration motors give you better efficiency and stronger vibration amplitude. This means you get more powerful vibration with less wasted energy. When you want a good vibration motor, look at both size and weight. If your device needs strong feedback, pick a motor with more weight and higher amplitude. If you want a light, energy-saving device, choose a smaller, lighter vibrating motor.

You can find common sizes and weights for brushless coin vibration motors in the market:

The right size and weight help you get the best vibration for your device. When you know how weight, amplitude, and efficiency work together, you can make better choices for your product.

Note: Choosing a vibration motor with the right weight and size helps you avoid weak vibration and poor user experience.

Vibration Motor Performance Factors

Vibration Intensity

Vibration intensity shows how strong the vibration feels. Many things affect this. The main ones are frequency, amplitude, what the motor is made of, its design, how it handles heat, and the manufacturer's reputation. You can see these in the table below:

It is important to know why vibration intensity matters. Strong vibration helps people feel alerts and feedback. If you pick a bigger brushless coin vibration motor, you get stronger vibration. This is because the motor's design has more weight on one side. That makes it shake more. You can also make the vibration stronger by changing the voltage with PWM. When you want a good vibration motor, think about size and weight. Bigger motors give stronger vibration, but they need more space.

• Higher frequency gives stronger vibration.

• More amplitude means more intense vibration.

• Bigger motors shake more because of their design and weight.

Frequency and Efficiency

Frequency tells how often the motor shakes. If you make the frequency higher, the vibration feels stronger. You need to balance frequency and efficiency for the best results. Small motors use less power and fit in small devices. Big motors use more power but give stronger vibration.

The size and weight of the motor change how well it works. Small motors save energy. Big motors give stronger vibration. Pick the right motor for your device. If you want good performance and efficiency, match the motor size to your needs.

Tip: Always check frequency and efficiency before picking a vibration motor. This helps you avoid weak vibration and short battery life.

User Experience

User experience depends on how the vibration feels. The strength of the vibration changes how people notice alerts. If you use a small motor, the vibration may feel weak. Big motors give stronger feedback that is easier to feel.

• You can change vibration strength by picking different motor sizes.

• Small motors may give weaker feedback.

• Some systems use different motor sizes for special vibration patterns.

When you design a device, think about how the motor affects user experience. Strong vibration helps people feel notifications. Weak vibration might not be noticed. You need to balance size and weight for the best feedback. Picking the right motor size helps you make a better device.

Note: Size and weight are very important for vibration motors. You must pick the right motor for your device and users.

Selecting the Right Coin Vibration Motor

Application Needs

When you pick a vibration motor, think about what your device needs. Every device needs a different vibration strength, speed, and how long it should last. For example, medical devices need motors that fit in small spaces and last a long time. You should always match the motor’s features to what your product does. The table below shows what you should check:

You should think about size and weight. If you pick the wrong size, your device might not work or fit right. Always ask why your device needs a certain vibration and how long it should last.

Space Constraints

Space is a big reason to pick the right coin vibration motor. Many devices, like smartwatches and fitness trackers, have very little room inside. The small size of a brushless coin vibration motor helps you save space, but you should not squeeze it too much. If you push the motor into a tight spot, it may not work well or could break. As devices get smaller, you need a motor that is both tiny and strong.

• Small motors fit better in thin devices.

• Squeezing the motor too much can make it weaker.

• Newer wearables need motors that are small and tough.

Engineers use special tools like tuned mass dampers and dynamic vibration absorbers. These tools help keep the vibration strong, even in small spaces. They let you get good performance without making your device bigger.

Step-by-Step Selection

You can use easy steps to pick a vibration motor for your product:

1. Check how well the motor works, like its frequency and vibration strength. This tells you if the motor is good for your device.

2. Look at the size and weight to see if the motor will fit.

3. Try the motor in a real device to see how it works.

4. Use driver chips to control the vibration strength.

5. Read the manufacturer’s datasheet for important facts about the motor.

If you follow these steps, you can make your device small and still work well. You will also avoid mistakes when picking a vibration motor. Remember, the right size and weight give you the best vibration and user experience.

Brushless Vibration Motor Installation Tips

Measurement Techniques

You must measure carefully before you put in a vibration motor. Good measurements help you stop problems with fitting and how strong the vibration is. Use a digital caliper to check the diameter, thickness, and weight. This tool gives you exact numbers. Always measure the space inside your device first. If you skip this, the motor might not fit or work right. You should also check the weight because it changes how the motor vibrates and how long it lasts. When you know the size and weight, you can pick a motor that fits your needs. This step helps you get the right frequency and strong vibration.

Tip: Always check your measurements twice before you buy or put in the vibration motor. This saves time and stops expensive mistakes.

Fit Verification

After you measure, you need to check the fit. Put the vibration motor in the device without glue or screws first. This lets you see if the size and weight are right for your design. If the motor moves or feels loose, you may need to change the space. A good fit keeps the vibration strong and steady. If the fit is bad, the motor may not work well or could break. You should also test the vibration at different frequencies to see if it feels right. This step helps you stop weak vibration and gives users the best experience.

• Look for gaps around the vibration motor.

• Make sure the weight does not move when it vibrates.

• Try the vibration at different frequencies.

Avoiding Common Mistakes

Many people make mistakes when they put in a vibration motor. These mistakes can make the motor work badly and not last as long. You need to know why these mistakes happen and how to fix them. The table below shows common mistakes and how to solve them:

If you do not line up the motor right, it may shake too much or wear out fast. Bad support can cause power problems and make the vibration weak. Always check the alignment and support before you finish putting in the motor. This helps keep the vibration strong and makes the motor last longer. When you follow these steps, you stop common problems and get the best performance from your vibration motor.

Picking the right size for your brushless coin vibration motor is important. It helps your device work better and feel nicer to use. When you choose the right dimensions, your device performs well and users are happier. If you pick carefully, you get:

• High reliability, so your device lasts longer and people trust it.

• Advanced designs, like the C0825BLDCL27, that work well and break less often.

• Custom options that fit your device and give stronger feedback you can feel.

Use the steps in this guide to stop common mistakes and get the best results.

FAQ

Why do brushless coin vibration motor dimensions matter for device performance?

The size of the motor changes how it works in your device. Small motors fit better in thin gadgets. Big motors make stronger vibrations you can feel. Picking the right size helps your device work well and feel good to use.

Why should you check both diameter and thickness before installing a vibration motor?

Diameter and thickness tell you if the motor will fit. If you do not check these, the motor might not work right. You could have weak vibration or trouble putting it in. Always measure both so you get strong feedback and no problems.

Why does motor weight influence vibration output?

The weight of the motor changes how strong the vibration is. Heavy motors make bigger vibrations you can notice. Light motors use less power but may feel weak. Pick the right weight for your device to get the best results.

Why is it important to verify motor fit before final installation?

Checking the fit stops the motor from being loose or weak. You should test the motor in your device before finishing. This helps you stop damage and makes sure users feel the vibration every time.

Why do you need to avoid common installation mistakes with vibration motors?

If you make mistakes like bad alignment or weak support, the motor may not work well. It could break sooner or give weak feedback. Follow good steps so your device lasts longer and works better.
