Advanced Tips for Controlling Brushless Motors in Modern Systems

Brushless motors are used in many modern devices, and controlling a brushless motor effectively is crucial for maximizing their efficiency and reliability. These motors are important for robotics, electric cars, and gadgets, and more people are using them every year. By 2030, the brushless motor market may grow to $5626.11 million, with a 5% yearly increase. This growth happens because they are lightweight and need little care. These features make them great for advanced uses. Learning how to control a brushless motor well helps them work their best.

Key Takeaways

• Brushless motors work well and last long, so they’re great for robots, electric cars, and devices.

• Use Pulse Width Modulation (PWM) to change motor speed by tweaking the duty cycle.

• Add sensors to give feedback for better control and to avoid timing problems.

• Clean and check for damage often to keep motors working longer and stop breakdowns.

• Pick sensor-based or sensorless control depending on what you need and can afford.

Key Principles of Motor Control

Understanding Brushless DC Motor Operation

A brushless DC motor works differently than older motors. It doesn’t use brushes but relies on an electronic controller to direct current. The controller changes the current in the windings, keeping the motor spinning. The rotor has permanent magnets, and the stator has coils that make a magnetic field. This interaction creates torque, which powers the motor.

Brushless DC motors have many benefits:

• High power compared to their weight

• Better efficiency, giving more power for less energy

• Quieter and longer-lasting because they don’t have brushes

• Less electromagnetic interference (EMI)

These qualities make them perfect for tasks needing accuracy and dependability, like robots and electric cars.

Importance of Feedback Mechanisms

Feedback systems are very important for controlling motors. They give live updates about the rotor’s position, speed, and torque. This helps the controller adjust the current flow for smooth operation.

For instance, sensors like Hall sensors or encoders help the motor move precisely. Without feedback, the motor could lose sync, causing problems or failure. Using sensor data improves decisions and boosts motor performance in different situations.

Role of Electronic Commutation in BLDC Motors

Electronic commutation is key to how BLDC motors work. It replaces the mechanical parts in older motors, making them more reliable and efficient. The controller manages phase currents based on the rotor’s position, creating torque to spin the motor.

This process makes the motor run smoother and quieter, which is great for drones and gadgets. Advanced methods like fuzzy logic control can handle changing loads and environments, improving efficiency and stability even more.

Tip: Permanent magnet synchronous motors (PMSMs) also use electronic commutation. Like BLDC motors, they use permanent magnets and work well in precise applications.

Essential Techniques for Controlling a Brushless Motor

Pulse Width Modulation (PWM) for Speed Regulation

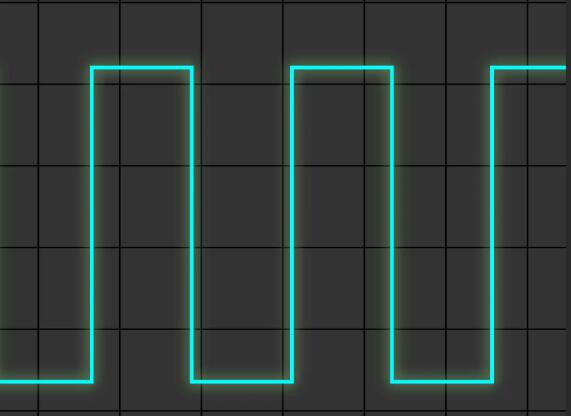

Pulse-width modulation (PWM) is a great way to control motor speed. It changes how long the signal stays "on" in each cycle. This is called the duty cycle. A higher duty cycle gives more power, making the motor faster. A lower duty cycle gives less power, slowing it down.

PWM turns control inputs into signals for the inverter. The inverter changes DC power into three-phase AC power to run the motor. This method keeps the motor running smoothly and avoids problems.

Using high-frequency PWM is very important for brushless motors. It helps control current during motor operation, improving performance. Keeping current ripple low also avoids issues.

Tip: Use a fixed frequency for PWM and adjust the duty cycle. This helps control speed better and reduces motor wear.

Sensor-Based vs. Sensorless Control Methods

You can control brushless motors with sensors or without them. Each method works well for different needs.

• Sensor-Based Control: This uses sensors like Hall sensors to find the rotor's position. It gives accurate feedback for smooth and precise motor control. This method is best for robots and electric cars needing high reliability.

• Sensorless Control: This skips physical sensors and uses voltage and current signals instead. It costs less and makes the system simpler. For example, one current sensor can save money but still work well. However, sensorless control may struggle at low speeds or with heavy loads.

Note: Sensor-based control is usually better but costs more. Sensorless control is good for saving money in simpler systems.

Current Limiting for Motor Protection

Keeping your motor safe from damage is very important. Current limiting helps by stopping the motor from using too much electricity. Too much current can overheat or harm the motor.

Modern systems use sensors to watch the current flow. If the current gets too high, the controller lowers the power to the motor. This keeps the motor safe while still working well.

Fuzzy logic control is great for keeping current limits while staying smooth. It’s a top choice for tasks needing high accuracy.

Tip: Set the current limit based on your motor's specs. This avoids damage and makes the motor last longer.

Advanced Ways to Improve BLDC Performance

Field-Oriented Control (FOC) for Better Precision

Field-oriented control helps motors work precisely and efficiently. It aligns the stator's magnetic field with the rotor's field. This creates more torque while wasting less energy. Think of it as guiding the motor's forces in the best way.

To use FOC, measure the rotor's position first. Then, change the three-phase currents into two simpler axes. This step, called Park and Clarke transformations, makes controlling the motor easier. After that, adjust the currents to improve torque and speed.

FOC is great for tasks needing accuracy, like robots or electric cars. It also saves energy by cutting down on waste.

Tip: Pair FOC with PMSMs for even better results. PMSMs are designed to work well with this method, making them energy-efficient.

Sinusoidal Commutation for Smoother Running

Sinusoidal commutation makes motors run smoother and quieter. Unlike older methods, it uses wave-like signals to power the motor. This reduces noise and vibration while delivering steady torque.

To use this method, create sinusoidal signals for each motor phase. These signals must match the rotor's position. You can find the position using sensors or sensorless methods. Aligning the signals ensures smooth operation at all speeds.

This method is perfect for quiet devices like drones or medical tools. It also boosts efficiency by lowering torque ripple, which wastes energy.

Note: Sinusoidal commutation needs advanced electronics. Make sure your system can handle the extra complexity.

Torque Control for Steady Performance

Torque control keeps motors stable under changing conditions. It adjusts the motor's torque to match the load, ensuring smooth operation.

One effective method is harmonic injection ADRC. It reduces torque ripple, making the motor run more steadily. Tests show it improves speed stability and outperforms older control methods.

To use torque control, monitor the motor's torque and speed in real-time. Advanced controllers like fuzzy logic can adapt to changes, keeping the motor stable and efficient.

Tip: Use torque control in systems needing stability, like factories or electric cars. It improves performance and protects the motor from wear.

Practical Uses of Brushless DC Motors

Brushless DC motors (BLDC) are changing many industries. They are efficient, reliable, and flexible. These motors are used in robots, electric cars, gadgets, and drones. Their ability to fit into modern systems makes them very useful.

Robots and Automation

BLDC motors are important in robots and factories. They help robotic arms move smoothly and accurately. For example, advanced methods like Field-Oriented Control (FOC) improve torque and motor performance. This makes them perfect for robotic tasks.

In factories, BLDC motors make conveyor belts and machines work better. They control speed, torque, and position, even in tough conditions. This boosts productivity and accuracy.

Did you know? High-tech industries like making computer chips use BLDC motors. They are precise and don’t pollute clean workspaces, making them essential.

Electric Cars and Transport

Electric cars depend on BLDC motors for better energy use and performance. These motors give more range, speed, and climbing power than older motors. For instance, Permanent Magnet Synchronous Motors (PMSMs) with BLDC tech can increase range by 25% and climbing power by 30%.

These motors also power car systems like steering and air conditioning. They work well for long periods without breaking down.

Gadgets and Drones

Brushless motors have improved gadgets and drones. In drones, they last longer and work better than brushed motors. They are used in farming, building, security, and delivery.

Hobby drones are more popular now because of brushless motors. These motors are quiet and smooth, making them great for fun or professional use.

Tip: When picking a BLDC motor for drones, choose one that is efficient and reliable. This ensures the drone works its best.

In gadgets, BLDC motors are used where precision and durability matter. They are quiet and efficient, making them perfect for modern devices.

Maintenance and Troubleshooting for Reliable Motor Control

Diagnosing Common Motor Control Issues

Motor problems can happen for many reasons. These include wear, bad conditions, or wrong use. Finding issues early helps your brushless DC motor work well.

Here are some common problems:

• Overheating: Too much heat can harm parts and lower efficiency.

• Electrical faults: Issues like short circuits can stop the motor.

• Mechanical wear: Parts like bearings may wear out, causing noise.

• Feedback errors: Broken sensors can make the motor move wrong.

These problems hurt performance, especially in precise systems like robots. Predictive maintenance can find issues early. It uses tools to watch things like heat and current. Fixing problems early avoids bigger damage.

Tip: Check your motor often for heat, strange sounds, or bad performance. Fixing small issues early saves money and time.

Regular Maintenance Practices

Taking care of your motor keeps it working longer. Follow these steps:

• Clean the motor and check software often.

• Look for heat damage on wires and insulation.

• Inspect parts like contacts, coils, and terminals for wear.

• Replace broken parts with original ones for better results.

• Tighten loose connections to the right level.

These steps help your motor run well and meet work needs. Maintenance workers should clean and check for wear during inspections.

Note: Regular care makes motors more reliable and stops sudden breakdowns.

Software Tools for Monitoring and Optimization

Modern software makes motor care easier. It uses data from sensors to check how the motor is doing. You can use it to:

1. Watch speed, torque, and heat in real-time.

2. Spot problems before they get worse.

3. Adjust settings to save energy and improve performance.

Some software predicts future issues using smart tools. For example, harmonic analysis finds small problems in motor movement. This helps you fix settings for smoother running.

Tip: Pick software that works with your motor system. Update it often to keep it useful and safe.

To control a brushless motor well, you need basic and advanced methods. Older techniques may fail with unexpected changes or outside problems. Reinforcement Learning is a smart way to adapt without needing a fixed model. It adjusts to changes and keeps the motor working smoothly.

Using these methods helps motors run reliably and efficiently in many tasks. Regular care and fixing problems early improve how they work. This stops damage from wear or overheating, keeping the motor useful for a long time.

FAQ

What is the best way to control the speed of a brushless motor?

Use Pulse Width Modulation (PWM) to manage speed. Change the duty cycle to adjust power. A higher duty cycle makes the motor go faster. A lower duty cycle slows it down. This method keeps the motor running smoothly and safely.

How can you protect a brushless motor from overheating?

Watch current levels with sensors. Set a current limit based on the motor’s specs. If the current goes too high, lower the power right away. Clean the motor and check wires often to avoid overheating.

Should you use sensor-based or sensorless control for your motor?

Pick sensor-based control for precise tasks like robotics. It gives accurate feedback for smooth motor movement. Use sensorless control for simpler systems to save money. But sensorless methods may not work well at low speeds or with heavy loads.

How do you troubleshoot a brushless motor that isn’t working properly?

Look for overheating, electrical issues, or worn-out parts. Check sensors for feedback problems. Use software to track speed, torque, and heat. Fix small problems early to prevent bigger ones.

What maintenance practices keep brushless motors reliable?

Clean the motor often and check for worn parts. Tighten loose connections and replace broken parts with original ones. Use software to watch performance and adjust settings. Regular care helps the motor last longer.
