7 Micro Vibrating Motors to Elevate Your Product Design

Micro vibrating motors are now important in modern product design. They are small and work well for many industries. People use them in smartphones, wearables, and medical tools. These motors make devices work better and easier to use. For example:

• The micromotor market may grow from $44.8 billion in 2023 to $68.3 billion by 2028. This is because of smaller designs and better manufacturing.

• Better haptic feedback in gaming and touchscreens makes users happier.

These motors help create smaller, energy-saving devices that work great.

Key Takeaways

• Small vibrating motors make products better by improving touch feedback.

• Picking the right motor, like coin or piezo, is important.

• Think about size and power use to save battery life.

• Check how strong and long-lasting the motor is before choosing.

• Mounting and using the motor correctly helps it work well and last longer.

Coin Vibration Motor

Features

A coin vibration motor is small and flat. It fits well in tight spaces. Its round shape makes it easy to use in tiny gadgets. These motors are light and usually 7 mm to 12 mm wide. They work by spinning a weight that creates vibrations.

These motors save energy and use little power. This makes them great for battery-powered devices. They also give steady vibrations, so they work well for a long time. They are strong and quiet, which makes them perfect for modern designs.

Applications

Coin vibration motors are used in gadgets needing touch feedback. Smartphones use them for vibrations in alerts and messages. Fitness trackers and smartwatches also use them for gentle vibrations.

In medical tools, these motors alert users quietly without bothering others. Gaming controllers use them to make games feel more real with vibrations. You can also find them in remote controls and handheld tools to improve how they feel to use.

Performance Metrics

When choosing a coin vibration motor, check its vibration strength, speed, and power use. These motors usually vibrate between 100 Hz and 250 Hz. Their vibration strength is between 0.5 G and 1.5 G, depending on the type.

They last a long time, often over 100,000 uses. They keep working well even with constant use. They need little power, usually 1.5 V to 3 V, so they are good for portable gadgets. Knowing these details helps you pick the right motor for your product.

Linear Resonant Actuator (LRA)

Features

Linear Resonant Actuators (LRAs) are known for being precise and efficient. Unlike regular vibration motors, LRAs vibrate in one direction only. This design makes their vibrations steady and focused. They are great for tasks needing accuracy. LRAs use AC voltage to move a coil against a spring and mass. This setup gives smooth and dependable performance.

LRAs are important in haptic technology. They create lifelike touch feedback, improving how users interact with devices. The table below shows their main features and uses:

Applications

LRAs are used in many electronic devices. Phones use them for accurate vibrations in alerts and touch features. Fitness trackers depend on them for gentle activity reminders. Tablets and smart gadgets use LRAs to make touch interactions better.

LRAs are also key in gaming controllers. They create realistic vibrations, making games more exciting. Medical tools use them for quiet alerts and feedback, helping users without disturbing others.

Performance Metrics

When choosing LRAs, check their vibration strength, frequency, and energy use. They usually work at 150 Hz to 300 Hz, offering different vibration levels. They use little power, making them perfect for battery devices. LRAs also last a long time, staying reliable even with frequent use.

Their ability to give precise vibrations while saving energy makes them ideal. Whether for wearables or gaming tools, LRAs are reliable and efficient for modern designs.

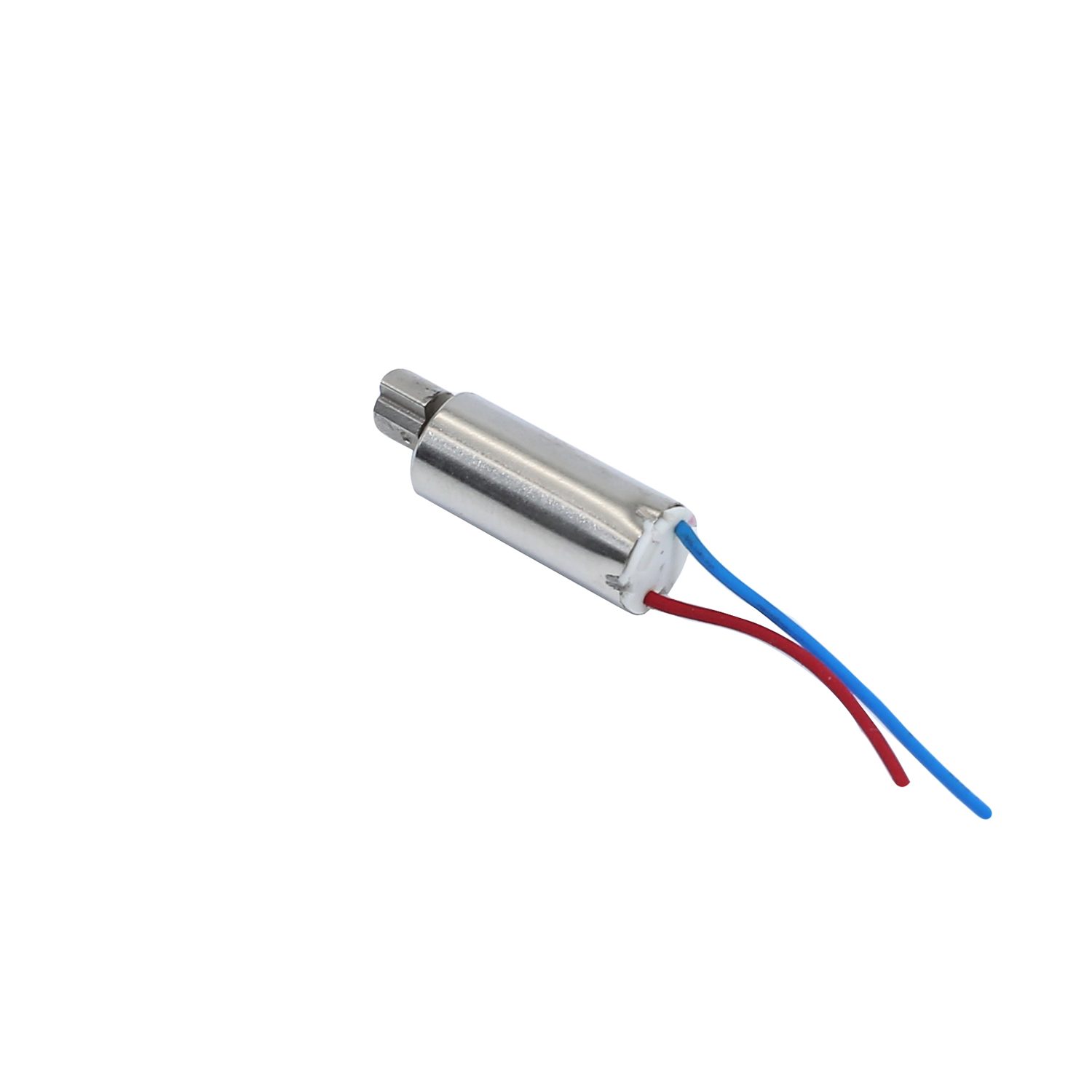

Coreless Vibration Motor

Features

Coreless vibration motors are small and light, great for portable gadgets. Unlike regular motors, they don’t have an iron core. This makes them lighter and more efficient. These motors have a round design with a coil on a rotor. This setup helps them work smoothly and respond quickly.

These motors save energy and use less power. They give steady vibrations while staying small and lightweight. This makes them perfect for tight spaces. They are also very quiet, so they don’t make much noise.

Applications

Coreless vibration motors are used in devices needing gentle, precise vibrations. Fitness trackers and smartwatches use them for quiet alerts. Handheld medical tools also rely on them for silent operation.

In gaming controllers, these motors make games feel more real with vibrations. Smartphones use them for alerts and touch feedback. Their flexibility makes them useful in many industries.

Performance Metrics

When choosing coreless motors, check their speed, power use, and durability. They usually run at speeds of 10,000 to 15,000 RPM. This gives fast and responsive vibrations. They need little power, about 1.5V to 3V, so they’re great for battery devices.

Coreless motors last a long time, often over 0 uses. Their light design reduces wear, keeping them reliable. Knowing these details helps you pick the best motor for your product.

SMD Vibration Motor

Features

Surface-Mount Device (SMD) vibration motors are tiny and fit easily on circuit boards. Their small size makes them perfect for gadgets with limited space. These motors use smart technology to give steady vibrations while saving energy.

A key feature is that they don’t create much electromagnetic interference (EMI). This makes them great for sensitive devices like medical tools and AR gadgets. SMD motors also match well with circuits, ensuring smooth operation. Their vibration frequency, usually between 150 Hz and 180 Hz, gives good feedback for users.

Applications

SMD vibration motors are used in devices needing accurate touch feedback. Phones and tablets use them for touch features, while fitness trackers rely on them for activity alerts. AR systems use these motors to make experiences feel more real with gentle vibrations.

Medical tools use SMD motors for quiet alerts and touch feedback, helping in clinical settings. Gaming controllers use them to add lifelike vibrations, making games more fun. These motors are useful in many industries because of their flexibility.

Performance Metrics

When choosing SMD vibration motors, check their vibration strength, frequency, and power use. They usually work at frequencies between 150 Hz and 180 Hz, giving great touch feedback. Their low energy use makes them ideal for battery-powered gadgets.

Durability is also important. SMD motors are built to last, even with frequent use. The table below shows more details about their performance:

Encapsulated Vibration Motor

Features

Encapsulated vibration motors are strong and waterproof. They have a sealed metal case that keeps out water and sweat. This makes them great for wet or humid places. Unlike regular motors, they don’t have moving parts outside. This design makes them last longer and work better in tough conditions.

These motors are small and save energy. They give steady vibrations without using much battery power. Their tough design helps them stay reliable for a long time.

Applications

Encapsulated vibration motors are used in many devices because they are durable. You can find them in:

• Phones, where they give dependable vibration alerts.

• Wearables like fitness trackers and smartwatches, offering gentle notifications.

• Gaming controllers, making games more fun with vibrations.

They are also used in medical tools because they are waterproof and safe. These motors work well in wet places, so they’re great for outdoor gadgets and sports gear.

Performance Metrics

When choosing encapsulated vibration motors, check how long they last. Their sealed design protects the inside parts, making them work longer. This is important for devices used a lot.

These motors usually vibrate between 100 Hz and 250 Hz. They give steady and accurate vibrations. They don’t use much power, which is good for battery devices. With no moving parts outside, they wear out less and last longer.

Encapsulated vibration motors are tough, efficient, and reliable. They are perfect for products that need to work well in different conditions.

Eccentric Rotating Mass (ERM) Motor

Features

Eccentric Rotating Mass (ERM) motors are very common vibration motors. They work by spinning a weight that is off-balance, creating vibrations. This simple design makes them easy to use and dependable. ERM motors are small and light, perfect for portable gadgets. You can change how strong the vibrations are by adjusting the motor's speed.

These motors are also affordable and work well without needing fancy controls. Their flexibility makes them useful for many things, like electronics and tools.

Applications

ERM motors are used in devices that need touch feedback. Phones use them for call and message vibrations. Gaming controllers rely on them to make games feel more real. Fitness trackers use ERM motors for activity alerts.

In medical tools, they give gentle vibrations to alert users quietly. Industrial machines also use them to improve how people interact with the equipment. Their ability to fit many uses makes them a favorite in different industries.

Performance Metrics

ERM motors create strong and steady vibrations. When tested with a 100 g weight, they show clear vibration levels. They also provide reliable acceleration at different vibration strengths. For example, studies show less acceleration when used on the arm, making them comfortable for long use.

The table below shows key performance details:

ERM motors last a long time and save energy. They work at frequencies between 100 Hz and 250 Hz. This range lets you adjust the vibration strength to fit your needs. Their durability and low power use make them great for modern designs.

Piezoelectric Vibration Motor

Features

Piezoelectric vibration motors are small and very efficient. They work using the piezoelectric effect, where certain materials vibrate when electricity is applied. These motors are precise and create high-frequency vibrations. Unlike regular motors, they have no moving parts, so they last longer and wear out less.

Their tiny size makes them great for small gadgets. They use very little power, which is perfect for battery devices. Plus, they are super quiet, so they don’t disturb users.

Applications

Piezoelectric vibration motors are used in many industries. In electronics, they improve devices like motion sensors and touchscreens. Fitness trackers use them to give gentle feedback during exercise. They also help ultrasonic sensors measure distances.

In healthcare, these motors are important for advanced medical tools. They help doctors with accurate tests and feedback. Their quiet design makes them ideal for hospitals and clinics.

Gaming controllers and AR gadgets also use these motors. They provide lifelike vibrations, making games and experiences more fun. Their flexibility makes them useful for both everyday devices and special tools.

Performance Metrics

Piezoelectric vibration motors perform very well. They work at high frequencies, often over 200 Hz, giving smooth and steady vibrations. They save energy, helping batteries last longer in portable gadgets.

The market for these motors is growing fast. By 2024, their value may reach $17,672.37 million, and by 2032, it could grow to $31,625.43 million, with an 8.2% yearly growth rate. This shows their increasing use in electronics and healthcare.

These motors are precise, efficient, and long-lasting, making them a great choice for modern designs.

Comparing Key Performance Metrics

Vibration Strength

Vibration strength shows how strong a motor's vibrations are. It affects how much users notice the vibrations. This is important for devices like gaming controllers or fitness trackers.

For example, coin motors usually vibrate between 0.5 G and 1.5 G. Piezoelectric motors give softer vibrations. Stronger vibrations work well for tools needing clear alerts. Softer vibrations are better for medical devices needing gentle feedback.

Pick a motor with the right vibration strength for your product. This helps make the device useful without being too intense.

Speed of Vibrations

Speed of vibrations, called frequency, is measured in Hertz (Hz). It shows how fast a motor vibrates. Faster vibrations feel smooth, while slower ones feel like pulses.

Most small motors vibrate between 100 Hz and 300 Hz. Linear resonant actuators (LRAs) vibrate precisely at 150 Hz to 300 Hz. They are great for touchscreens. Eccentric rotating mass (ERM) motors vibrate slower, making them good for general use.

Choose a motor with the right speed for your product's needs. This ensures it works well and feels good to users.

How Long Motors Last

How long a motor lasts is called longevity. It shows how reliable a motor is over time. Motors with fewer moving parts, like piezoelectric ones, last longer because they wear out less.

Encapsulated motors are made to handle tough conditions and last longer. Coreless motors are lightweight and also stay reliable for a long time.

When picking a motor, think about how often it will be used. A strong motor keeps your product working well and reduces repair costs.

Practical Tips to Choose a Vibration Motor

Picking the Right Motor for Your Product

The motor you choose should match your product's purpose. Different motors have unique uses. Coin motors are great for small gadgets like smartwatches. LRAs work best for tasks needing accurate touch feedback. ERM motors are good for strong vibrations, while piezoelectric motors are quiet and efficient.

Start by thinking about what your device needs. Does it need gentle feedback for medical tools? Or does it need strong vibrations for gaming controllers? Picking the right motor type makes your product work better and keeps users happy.

Thinking About Size and Power Limits

Size and power are important for portable gadgets. Small motors like SMD or coreless motors fit well in tight spaces. These motors save energy and help batteries last longer. They are perfect for wearables and handheld devices.

Power limits also matter. Devices like fitness trackers need motors that use little power. Encapsulated motors are strong and efficient while using less energy. Always check your product's space and power needs before choosing a motor.

Balancing Cost and Performance

Cost and performance must be balanced when designing products. Motors like LRAs or piezoelectric ones cost more but give better feedback and last longer. If your budget is tight, ERM motors are cheaper and still reliable.

Make a list of what your product needs most. If durability and efficiency are key, spending more on a better motor is worth it. For simpler devices, coin motors can do the job at a lower cost. Comparing cost and performance helps you pick the best motor for your product.

Mounting and Driving Small Vibration Motors

Mounting Techniques

Mounting small motors correctly helps them work well and last longer. There are different ways to mount them based on your product's design. Using sticky adhesive is common for lightweight gadgets. It holds the motor firmly without needing extra parts. For stronger setups, screws or clamps are better. These keep the motor secure in devices that move a lot or vibrate often.

Another good way is to build the motor into the product's case. This saves space and keeps the motor safe from damage. Always make sure the motor's vibrations don’t affect nearby parts. If mounted poorly, the motor may not work well and could harm sensitive components.

Driving Circuits

Circuits control how small vibration motors work. A simple circuit has a power source, a switch, and a resistor to manage current. For better control, you can use a PWM (Pulse Width Modulation) driver. PWM lets you change the motor's speed and vibration strength. This is helpful for devices needing precise touch feedback.

Microcontrollers are another great choice for controlling motors. They let you program special vibration patterns to improve user experience. For example, short vibrations can signal alerts, while longer ones can act as alarms. Always match the circuit's voltage and current to the motor's needs to avoid damage.

Ensuring Optimal Performance

To keep small motors working their best, follow some key tips. First, use the motor within its recommended voltage range. Too much power can overheat it and shorten its life. Second, test the motor's vibration speed to ensure it fits your product. For instance, fitness trackers need soft vibrations, while gaming controllers need stronger ones.

Regular care also helps motors last longer. Clean off dust or dirt that might block the motor. If your device is used in tough conditions, pick encapsulated motors for extra protection. By doing these things, your motor will give steady vibrations and reliable feedback.

Picking the right micro vibration motors can improve your product design. Each motor type has special features. For example, piezoelectric motors are precise, and encapsulated motors are tough. These motors make devices better by giving steady and useful vibrations.

Check important details like how strong the vibrations are and how long the motor lasts. Think about how to attach the motor and make sure it fits your product's needs. This helps you build creative gadgets that people will notice.

Tip: Choosing the right motor makes your product work better and keeps users happy.

FAQ

What is the smallest type of micro vibration motor?

Coin vibration motors are very small. Their flat, round shape fits tight spaces. This makes them great for wearables and small gadgets. They are usually 8 mm to 12 mm wide.

How do you choose the right vibration motor for your product?

Think about what your product needs. LRAs are best for accurate feedback. Encapsulated motors are great if you need something durable. Check the size, power use, and cost to find the right motor.

Can vibration motors work in wet environments?

Yes, encapsulated vibration motors can handle wet or humid places. Their sealed design keeps water out, so they work well in outdoor gadgets, medical tools, and sports gear.

Do vibration motors consume a lot of power?

No, most micro vibration motors use very little power. Coin and coreless motors work well at 1.5V to 3V. This makes them perfect for battery devices like fitness trackers and smartwatches.

Are piezoelectric motors better than ERM motors?

Piezoelectric motors are more precise and last longer since they have no moving parts. ERM motors are cheaper and more flexible, making them good for things like gaming controllers and phones.
