5 Key Specifications of Coin Vibration Motors You Should Know

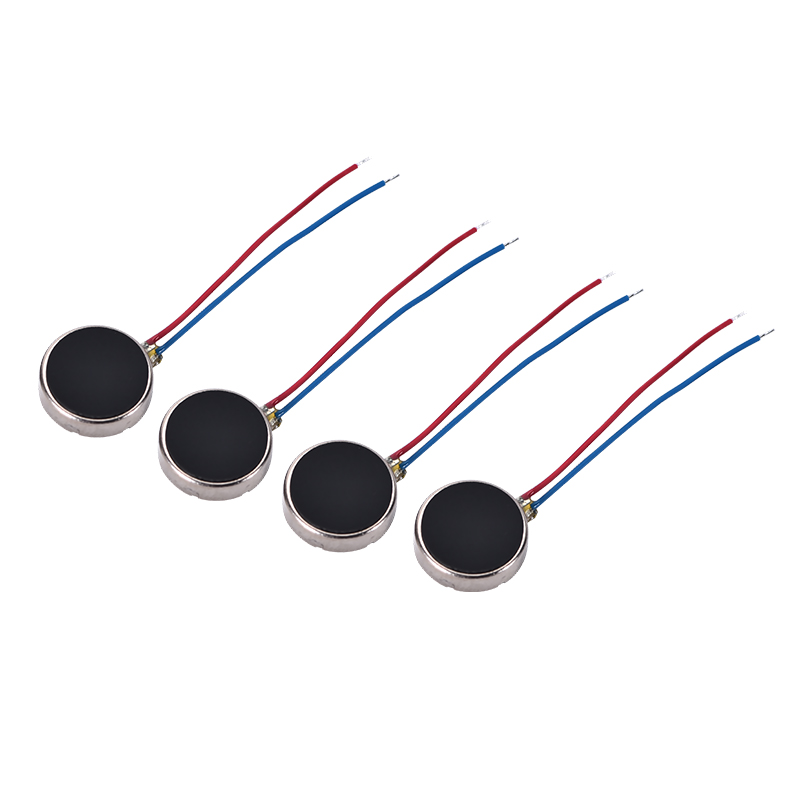

Coin vibration motors are important parts of modern gadgets. They give touch feedback and make using devices more interactive. These small motors are key to haptic tools, helping with touch-based features like accessibility and communication. They are often used in assistive devices to help people with hearing loss feel vibrations. Their tiny size and careful design make them perfect for wearable tech and mobile devices. Whether small or regular-sized, these motors make devices easier to use and more enjoyable.

Key Takeaways

• Coin vibration motors come in different sizes, usually 4 mm to 20 mm. Pick the right size so your device vibrates properly.

• The voltage is important for how the motor works. Most coin motors run best between 2.7V and 3.3V DC. Make sure the motor's voltage matches your device's power.

• Vibration strength depends on amplitude. Use tools like vibration meters to check if your device gives the right feel.

• The motor's speed, measured in RPM, affects vibration power. Faster motors make stronger vibrations, great for games or helpful tools.

• Power use matters for portable devices. Choose motors that save energy to make batteries last longer but still vibrate well.

1. Motor Diameter

Common Diameter Ranges

Coin vibration motors come in many sizes for different uses. Their diameters usually range from 7 mm to 12 mm. Smaller motors, like 7 mm or 8 mm, fit tiny gadgets like wearables. Bigger motors, up to 12 mm, work better for stronger vibrations in things like gaming controllers or medical tools.

Here’s a table showing common diameter ranges for motor types:

Why Diameter Matters in Haptic Devices

The size of a coin vibration motor affects how it works. Small motors are great for tiny devices like hearing aids. They save space and still work well. Bigger motors give stronger vibrations, which are better for things like gaming or medical tools.

For example, an 8 mm motor is often used in phones. It’s small but strong enough to feel vibrations. In wearables, thinner motors around 7 mm are comfy and still work well.

Picking the right size motor is important. It changes how much it vibrates, how much power it uses, and how well it fits your device. Knowing the sizes helps you choose the best motor for your needs.

2. Operating Voltage

Voltage Ranges for Coin Vibration Motors

Coin vibration motors work best within certain voltage ranges. Most motors run on 2.7V to 3.3V DC, making them great for small, portable gadgets.

Manufacturers list voltage types in datasheets. These include rated voltage, operating voltage, and start voltage:

When picking a motor, check the voltage range carefully. It must match your device's power supply to work well.

Impact of Voltage on Vibration Performance

Voltage affects how strong the motor vibrates. Higher voltages make stronger vibrations, which improve touch feedback. For example, a motor at 3.0V vibrates harder than one at 2.7V.

But using too much voltage can harm the motor or shorten its life. Staying within the recommended range keeps it working safely and prevents overheating.

In tools for accessibility, controlling voltage is very important. It ensures vibrations are strong enough but not too much. Wearable devices, like fitness trackers, use lower voltages to save battery while still giving good feedback.

By knowing how voltage changes vibration strength, you can make the motor work best for your device.

3. Vibration Amplitude

How to Measure Vibration Amplitude

Measuring vibration amplitude helps improve how coin motors work. Amplitude means the strength of vibrations, which affects touch feedback. You can measure it using different tools:

• Fluke 805 Vibration Meter: This tool gives steady and accurate readings.

• Accelerometers: These sensors turn motion into electrical signals to measure vibrations.

• Seismic and Proximity Probes: These tools also check vibration levels in motors.

Two main methods are used to measure amplitude:

1. Overall Level Measurement: This method shows all vibrations together for a quick check.

2. Narrowband Analysis: This breaks vibrations into frequencies using FFT for detailed results.

Good measurements ensure the motor gives steady feedback. This is important for devices like hearing aids or accessibility tools.

What Changes Vibration Amplitude

Many things affect how strong vibrations are in haptic devices. The motor's frequency matters a lot. Higher frequencies make stronger and more exact vibrations. This is useful for gaming or medical tools.

The motor's design also changes amplitude. In ERM motors, the size and position of the spinning weight affect vibration strength. A bigger offset makes stronger vibrations.

ERM motors work by spinning an uneven weight. This creates the vibrations you feel. Picking the right motor design helps you get the vibration strength you need.

Knowing these factors helps you make motors work better for your devices.

4. Rated Speed

What RPM Means in Coin Vibration Motors

Rated speed tells how fast a motor spins in RPM (revolutions per minute). This speed affects how strong the motor vibrates. Most coin motors spin between 8,000 and 12,000 RPM, based on their design and use.

When picking a motor, think about its RPM. Faster motors make stronger vibrations, great for gaming or assistive tools. Slower motors are better for gentle feedback, like in wearables or accessibility devices.

How Speed Affects Vibration Strength

The motor's speed decides how strong its vibrations feel. Faster motors, like one spinning at 11,000 RPM, give sharper vibrations than slower ones at 10,000 RPM.

But higher speeds use more power and wear out faster. Balancing speed and efficiency helps the motor last longer. For medical tools or phones, moderate speeds work best for steady performance.

Knowing how RPM changes vibration strength helps you pick the right motor. Whether for haptic gadgets or assistive tools, speed is key for good performance.

5. Power Consumption

Low Power Use for Portable Gadgets

Coin vibration motors use very little power. This makes them great for portable gadgets like wearables and phones.

Some motors, like the 10 mm coin motor, can use up to 80 mA at 3 V. This lets you pick a motor that fits your gadget's power needs.

When choosing a motor, look for ones that use less power. This saves energy while still giving good vibrations.

Balancing Power and Performance

Finding the right balance between power and performance is important. Better motor designs save energy and make batteries last longer. For example, vibro motors are over 90% efficient. They spin at 12,500 RPM and vibrate at 208 Hz. These features make them perfect for low-power gadgets like fitness trackers.

Good designs also help batteries last longer. Picking the right voltage range is key. Motors that stay in their voltage range work well and save energy.

By knowing how power and performance work together, you can pick motors that fit your gadget. This keeps them working well without wasting energy or wearing out quickly.

Applications of Coin Vibration Motors

Coin vibration motors are used in many industries. Their small size and ability to give touch feedback make them important in modern devices.

Wearable Technology

Wearable gadgets depend on coin vibration motors for alerts and feedback. Smartwatches and fitness trackers use them to notify users about calls, messages, or fitness goals. These motors are tiny, so they fit well in small designs without losing performance.

As wearables become more popular, the need for these motors grows. The electronics industry uses them to improve user experience. For example, Linear Coin Vibration Motors are in demand for wearables needing touch feedback. This shows how important vibrations are for making devices easier and more fun to use.

Tip: Choose small motors for wearables that balance power use and vibration strength.

Mobile Devices

Phones use coin vibration motors for touch feedback and alerts. These motors help people with hearing loss by giving touch signals for notifications.

In gaming, phones use these motors to make games feel real. For example, they can mimic hitting a target or driving on bumpy roads. This makes games more exciting and keeps players engaged.

• Common uses in phones:

  • Touch feedback for screens

  • Vibration alerts for messages

  • Better gaming experiences

Medical Equipment

Coin vibration motors are key in medical devices. Vibrating vests, for instance, use them to give rhythmic feedback for people with autism. These vibrations help users feel more connected to their surroundings.

Manufacturers check vibration frequency, duty cycle, and temperature for safety. For example, frequency errors stay under 1%, and duty cycle errors stay under 2% for comfort. Temperature is also monitored to meet medical safety rules, staying below 43 °C.

Coin vibration motors improve accessibility in medical tools, making them very useful in healthcare.

Gaming and Haptic Feedback Systems

Gaming feels more real with coin vibration motors. These motors make games exciting by adding touch feedback. For example, in virtual air hockey, they mimic collisions. When the mallet hits the puck, you feel a vibration. This makes the game more fun and lifelike.

Haptic tools in games use motors for specific feedback. In a racing game, you might feel the engine's rumble or a crash's jolt. These vibrations match in-game actions, like hitting walls or shooting weapons. This makes the game more interactive and detailed.

Coin vibration motors also help players with hearing loss. Vibrations can warn about enemies or timers running out. This keeps everyone connected to the game, no matter their abilities.

These features are not just for consoles. Mobile games also use vibration motors for better gameplay. Whether solving puzzles or playing action games, vibrations add excitement. They make mobile games feel more alive and engaging.

With coin vibration motors, gaming is more realistic and inclusive. These tiny motors change how you play, making every moment unforgettable.

Integration Best Practices

Picking the Right Coin Vibration Motor

Choosing the right motor helps your device work well. First, check the motor's size and thickness to ensure it fits. Small motors are great for wearables, while bigger ones suit gaming or medical tools. Think about how strong the vibration needs to be. Stronger vibrations are better for haptic devices, while softer ones work for accessibility tools.

Power use is also important. Fitness trackers need motors that save energy to make batteries last longer. Also, think about where the motor will be used. Make sure it can handle the temperature and humidity of its environment.

Here’s a simple table to help you choose:

Tip: Energy-saving motors cost more but save money by using less power.

Correct Mounting and Alignment

Mounting the motor properly helps it work better. Use adhesive tape or brackets made for vibration motors. These keep the motor steady and stop it from moving too much. Align the motor carefully to avoid uneven vibrations, which can feel strange.

Don’t place the motor near sensitive parts, as vibrations might cause problems. For example, in medical tools, bad alignment can mess up sensors. Test the motor’s position during setup to fix any issues early.

Handling Power Supply and Voltage

Managing power is key to keeping the motor working well. Use a steady power source that matches the motor’s voltage. Too much voltage can break the motor, while too little makes it weaker. For example, a 3V motor works best at its rated voltage.

In portable gadgets, pick motors that use less power to save battery life. Good power management keeps the motor running without wasting energy. Check the power supply often to avoid problems.

Note: Always read the motor’s datasheet for voltage and current details to prevent damage.

Testing and Improving Performance

Testing and improving vibration motors help them work better in devices. A step-by-step process ensures they are reliable and give good touch feedback.

1. Check Vibration Strength
   Use tools like accelerometers or vibration meters to measure strength. These tools confirm if the motor meets performance needs. For example, haptic devices need steady vibrations for accurate touch feedback.

2. Measure Power Use
   Test how much power the motor uses while running. A multimeter can check current and voltage. This ensures the motor stays within its power limits. Saving power is key for gadgets like wearables with limited battery life.

3. Test in Real Situations
   Try the motor in conditions like its actual use. For example, test wearable motors on flexible surfaces. This helps find problems like weak vibrations or bad alignment.

4. Fine-Tune Settings
   Adjust things like voltage or motor placement to improve performance. Slightly raising voltage (within safe limits) can make vibrations stronger. Proper alignment stops uneven vibrations, which can affect usability.

5. Check Long-Term Strength
   Run tests to see if the motor lasts over time. This is important for devices like medical tools or gaming gear. Watch for wear or overheating during these tests.

Tip: Always follow the motor's datasheet for testing and usage advice. This keeps the motor safe and working well.

By testing and improving vibration motors, you make them last longer and work better. This is crucial for building reliable and efficient haptic devices.

Coin vibration motors are important for modern devices that use touch feedback. They turn sound signals into vibrations, helping people, especially in assistive tools. For instance, these motors are very accurate at copying sounds like a phone ringing (99%) or alarms (99%). This makes them very useful in gadgets needing exact feedback.

Knowing key details—like motor size, voltage, vibration strength, speed, and power use—helps you pick the best motor for your gadget. By using good setup methods, these motors can work well and improve how users interact with devices.

FAQ

How long do coin vibration motors last?

Most coin vibration motors work for 86,000 to 200,000 cycles. Using them correctly and avoiding too much voltage helps them last longer. Regular checks keep them reliable for your device.

Can coin vibration motors handle very hot or cold temperatures?

Yes, many motors work between -20°C and 70°C. Always check the motor's datasheet to know its exact temperature limits for best performance.

How do coin vibration motors help people with hearing loss?

These motors give vibrations instead of sounds, making devices easier to use. This tactile feedback helps people interact with gadgets without needing sound alerts.

Are coin vibration motors safe around water?

Some motors resist water but are not fully waterproof. If your device needs water protection, choose motors with an IP rating or add extra sealing.

What’s the difference between ERM and LRA motors?

ERM motors use a spinning weight to make vibrations. LRA motors use a linear actuator for more accurate and steady vibrations. LRA motors are better for advanced touch feedback systems.
